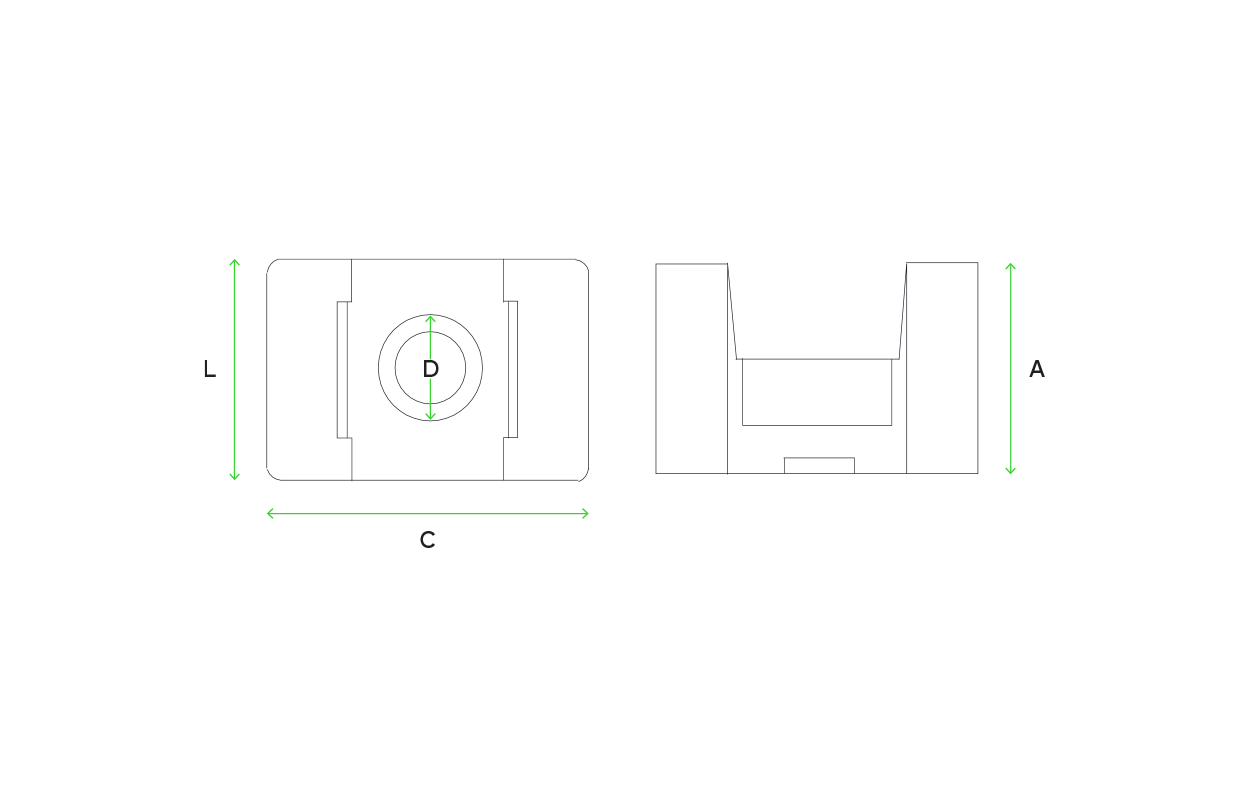

| CODE | REFERENCE | C LENGTH (mm) | L WIDTH (mm) | A HEIGHT (mm) | D DIAMETER (mm) | RECOMMENDED SCREW | RECOMMENDED CLAMP WIDTH (mm) |
|---|---|---|---|---|---|---|---|
| 7021011509 | PV-15.00x9.65-N | 15,0 | 9,7 | 6,9 | 7,1 | M3 | 3,6 |
| 7021011712 | PV-17.80x12.70-N | 17,8 | 12,7 | 8,2 | 7,1 | M3 | 4,8 |
| 7021012216 | PV-22.30x16.00-N | 22,3 | 16,0 | 9,7 | 8,1 | M4 | 7,6 |
| 7021012217 | PV-22.30x16.00S-N | 22,3 | 16,0 | 9,7 | 10,1 | M5 | 7,6 |
| 7021012516 | PV-25.40x16.00-N | 25,4 | 16,0 | 10,8 | 10,1 | M5 | 9,0 |
