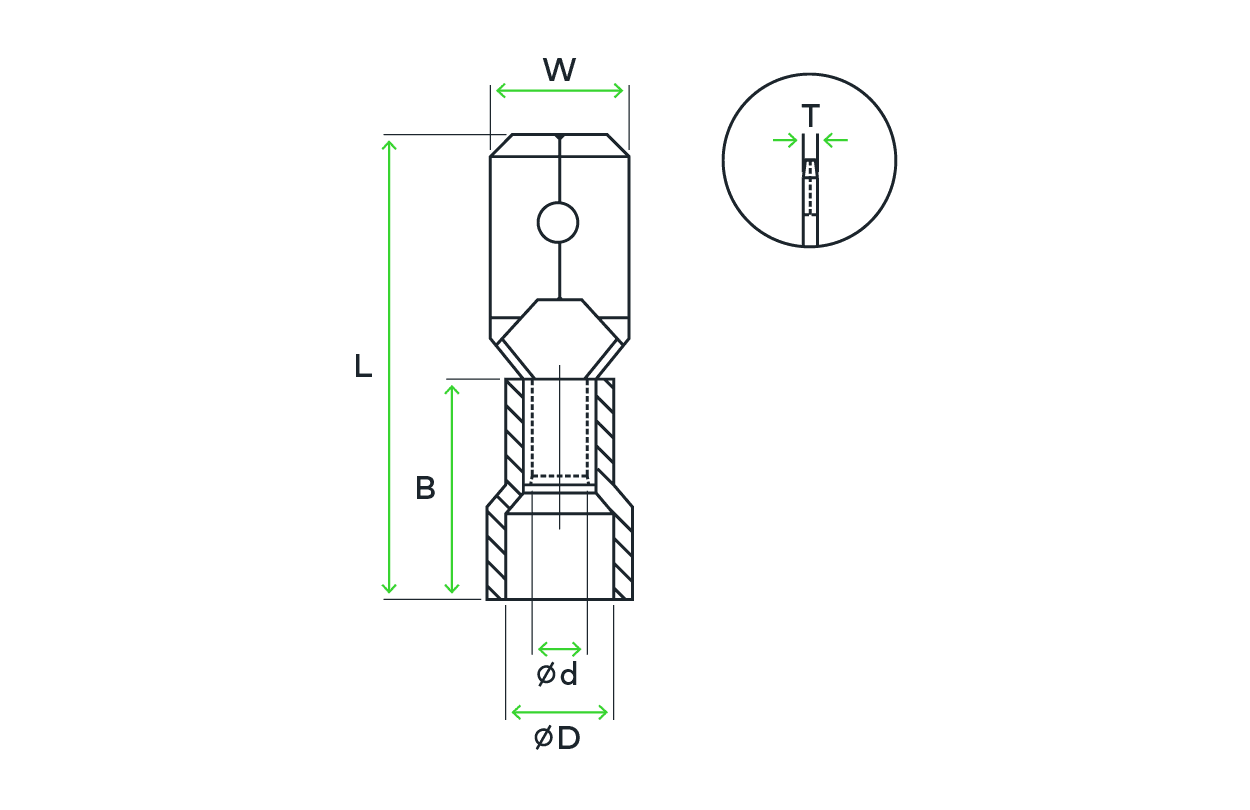

| CODE | REFERENCE | SECTION (mm2) | W (mm) | L (mm) | T (mm) | B (mm) | Ød (mm) | ØD (mm) | COLOR |
|---|---|---|---|---|---|---|---|---|---|
| 7030915285 | TFM-1.5-2.8-05 | 0.50-1.50 | 2.8 | 18.5 | 0.5 | 10.0 | 1.8 | 3.6 | Red |
| 7030915288 | TFM-1.5-2.8-08 | 0.50-1.50 | 2.8 | 18.5 | 0.8 | 10.0 | 1.8 | 3.6 | Red |
| 7030915485 | TFM-1.5-4.8-05 | 0.50-1.50 | 4.5 | 19.0 | 0.5 | 10.0 | 1.8 | 3.6 | Red |
| 7030915488 | TFM-1.5-4.8-08 | 0.50-1.50 | 4.5 | 19.0 | 0.8 | 10.0 | 1.8 | 3.6 | Red |
| 7030915638 | TFM-1.5-6.3-08 | 0.50-1.50 | 6.3 | 21.1 | 0.8 | 10.0 | 1.8 | 3.8 | Red |
| 7030925285 | TFM-2.5-2.8-05 | 1.50-2.50 | 2.8 | 18.5 | 0.5 | 10.0 | 2.4 | 4.2 | Blue |
| 7030925288 | TFM-2.5-2.8-08 | 1.50-2.50 | 2.8 | 18.5 | 0.8 | 10.0 | 2.4 | 4.2 | Blue |
| 7030925485 | TFM-2.5-4.8-05 | 1.50-2.50 | 4.5 | 19.0 | 0.5 | 10.0 | 2.4 | 4.2 | Blue |
| 7030925488 | TFM-2.5-4.8-08 | 1.50-2.50 | 4.5 | 19.0 | 0.8 | 10.0 | 2.4 | 4.2 | Blue |
| 7030925638 | TFM-2.5-6.3-08 | 1.50-2.50 | 6.3 | 21.1 | 0.8 | 10.0 | 2.3 | 4.2 | Blue |
| 7030960638 | TFM-6-6.3-08 | 4-6 | 6.3 | 24.0 | 0.8 | 13.0 | 3.5 | 5.4 | Yellow |
