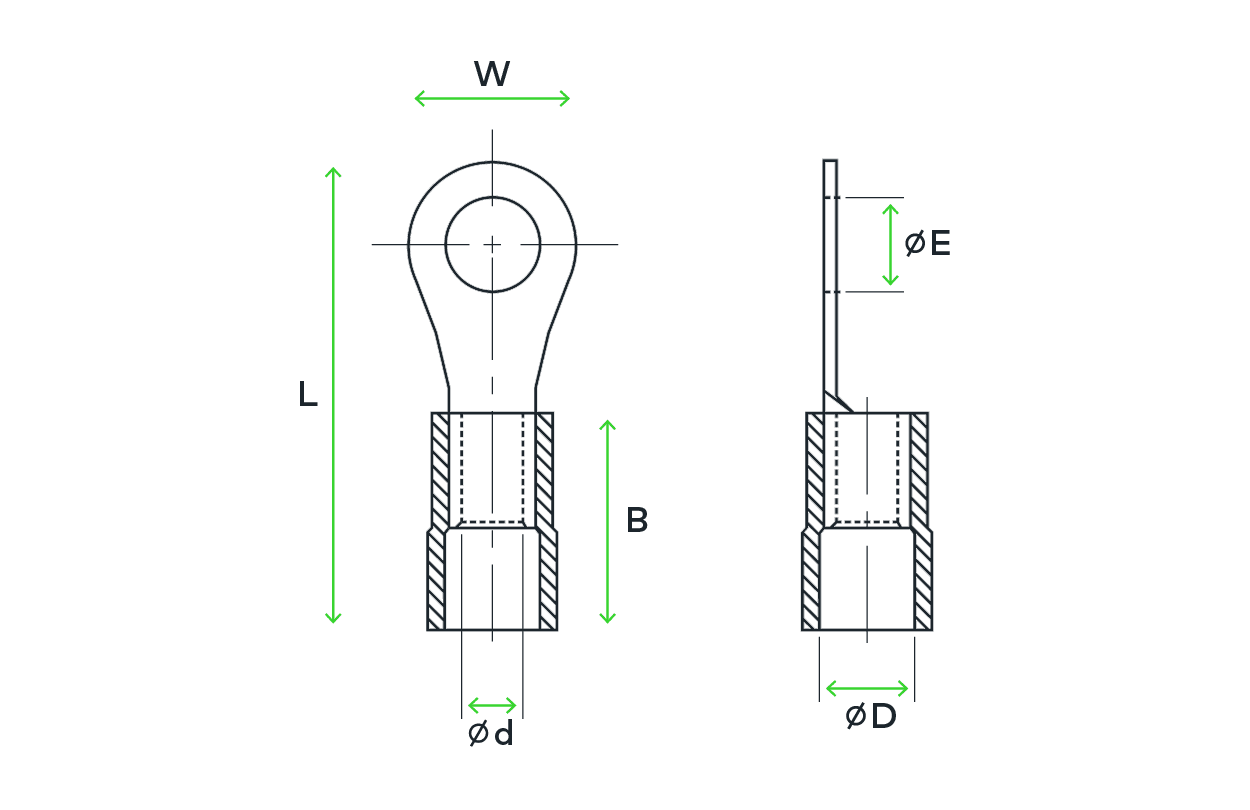

| CODE | REFERENCE | SECTION (mm2) | ØE (mm) | ØD (mm) | Ød (mm) | W (mm) | B (mm) | L (mm) | COLOR |
|---|---|---|---|---|---|---|---|---|---|
| 7030101030 | TOL-1.5-3A | 0.25-1.50 | 3.2 | 4.0 | 1.7 | 5.5 | 10.4 | 17.3 | Red |
| 7030101032 | TOL-1.5-3 | 0.25-1.50 | 3.7 | 4.0 | 1.7 | 5.5 | 10.4 | 17.3 | Red |
| 7030101037 | TOL-1.5-3M | 0.25-1.50 | 3.7 | 4.0 | 1.7 | 6.6 | 10.4 | 20.3 | Red |
| 7030101040 | TOL-1.5-4M | 0.25-1.50 | 4.3 | 4.0 | 1.7 | 6.6 | 10.4 | 20.3 | Red |
| 7030101050 | TOL-1.5-5 | 0.25-1.50 | 5.3 | 4.0 | 1.7 | 8.0 | 10.4 | 21.8 | Red |
| 7030101060 | TOL-1.5-6 | 0.25-1.50 | 6.4 | 4.0 | 1.7 | 11.6 | 10.4 | 27.5 | Red |
| 7030101080 | TOL-1.5-8 | 0.25-1.50 | 8.4 | 4.0 | 1.7 | 11.6 | 10.4 | 27.5 | Red |
| 7030101100 | TOL-1.5-10 | 0.25-1.50 | 10.5 | 4.0 | 1.7 | 13.6 | 10.4 | 31.8 | Red |
| 7030102030 | TOL-2.5-3 | 1.50-2.50 | 3.7 | 4.6 | 2.3 | 8.5 | 10.4 | 22.3 | Blue |
| 7030102032 | TOL-2.5-3A | 1.50-2.50 | 3.2 | 4.6 | 2.3 | 8.5 | 10.4 | 22.3 | Blue |
| 7030102037 | TOL-2.5-3M | 1.50-2.50 | 3.7 | 4.6 | 2.3 | 6.6 | 10.4 | 19.8 | Blue |
| 7030102040 | TOL-2.5-4 | 1.50-2.50 | 4.3 | 4.6 | 2.3 | 8.5 | 10.4 | 22.3 | Blue |
| 7030102043 | TOL-2.5-4M | 1.50-2.50 | 4.3 | 4.6 | 2.3 | 6.6 | 10.4 | 19.8 | Blue |
| 7030102050 | TOL-2.5-5 | 1.50-2.50 | 5.3 | 4.6 | 2.3 | 9.5 | 10.4 | 22.3 | Blue |
| 7030102060 | TOL-2.5-6 | 1.50-2.50 | 6.4 | 4.6 | 2.3 | 12.0 | 10.4 | 27.3 | Blue |
| 7030102080 | TOL-2.5-8 | 1.50-2.50 | 8.4 | 4.6 | 2.3 | 12.0 | 10.4 | 27.3 | Blue |
| 7030102100 | TOL-2.5-10 | 1.50-2.50 | 10.5 | 4.6 | 2.3 | 13.6 | 10.4 | 30.8 | Blue |
| 7030106030 | TOL-6-3 | 4-6 | 3.7 | 6.6 | 3.5 | 9.5 | 13.5 | 26.5 | Yellow |
| 7030106040 | TOL-6-4 | 4-6 | 4.3 | 6.6 | 3.5 | 9.5 | 13.5 | 26.5 | Yellow |
| 7030106050 | TOL-6-5 | 4-6 | 5.3 | 6.6 | 3.5 | 9.5 | 13.5 | 26.5 | Yellow |
| 7030106060 | TOL-6-6 | 4-6 | 6.4 | 6.6 | 3.5 | 12.0 | 13.5 | 29.2 | Yellow |
| 7030106080 | TOL-6-8 | 4-6 | 8.4 | 6.6 | 3.5 | 15.0 | 13.5 | 34.5 | Yellow |
| 7030106100 | TOL-6-10 | 4-6 | 10.5 | 6.6 | 3.5 | 15.0 | 13.5 | 34.5 | Yellow |
| 7030106120 | TOL-6-12 | 4-6 | 13.2 | 6.6 | 3.5 | 18.2 | 13.5 | 35.0 | Yellow |
| 7030110040 | TOL-10-4 | 10 | 4.3 | 8.3 | 4.5 | 10.0 | 17.5 | 30.0 | Red |
| 7030110050 | TOL-10-5 | 10 | 5.3 | 8.3 | 4.5 | 10.0 | 17.5 | 30.0 | Red |
| 7030110060 | TOL-10-6 | 10 | 6.4 | 8.3 | 4.5 | 11.0 | 17.5 | 31.5 | Red |
| 7030110080 | TOL-10-8 | 10 | 8.4 | 8.3 | 4.5 | 14.0 | 17.5 | 36.0 | Red |
| 7030110100 | TOL-10-10 | 10 | 10.5 | 8.3 | 4.5 | 18.0 | 17.5 | 39.5 | Red |
| 7030116050 | TOL-16-5 | 16 | 5.3 | 9.7 | 5.9 | 11.0 | 23.0 | 37.5 | Blue |
| 7030116060 | TOL-16-6 | 16 | 6.4 | 9.7 | 5.9 | 11.0 | 23.0 | 37.5 | Blue |
| 7030116080 | TOL-16-8 | 16 | 8.4 | 9.7 | 5.9 | 14.0 | 23.0 | 43.0 | Blue |
| 7030116100 | TOL-16-10 | 16 | 10.5 | 9.7 | 5.9 | 18.0 | 23.0 | 45.0 | Blue |
| 7030116120 | TOL-16-12 | 16 | 13.0 | 9.7 | 5.9 | 18.0 | 23.0 | 45.0 | Blue |
