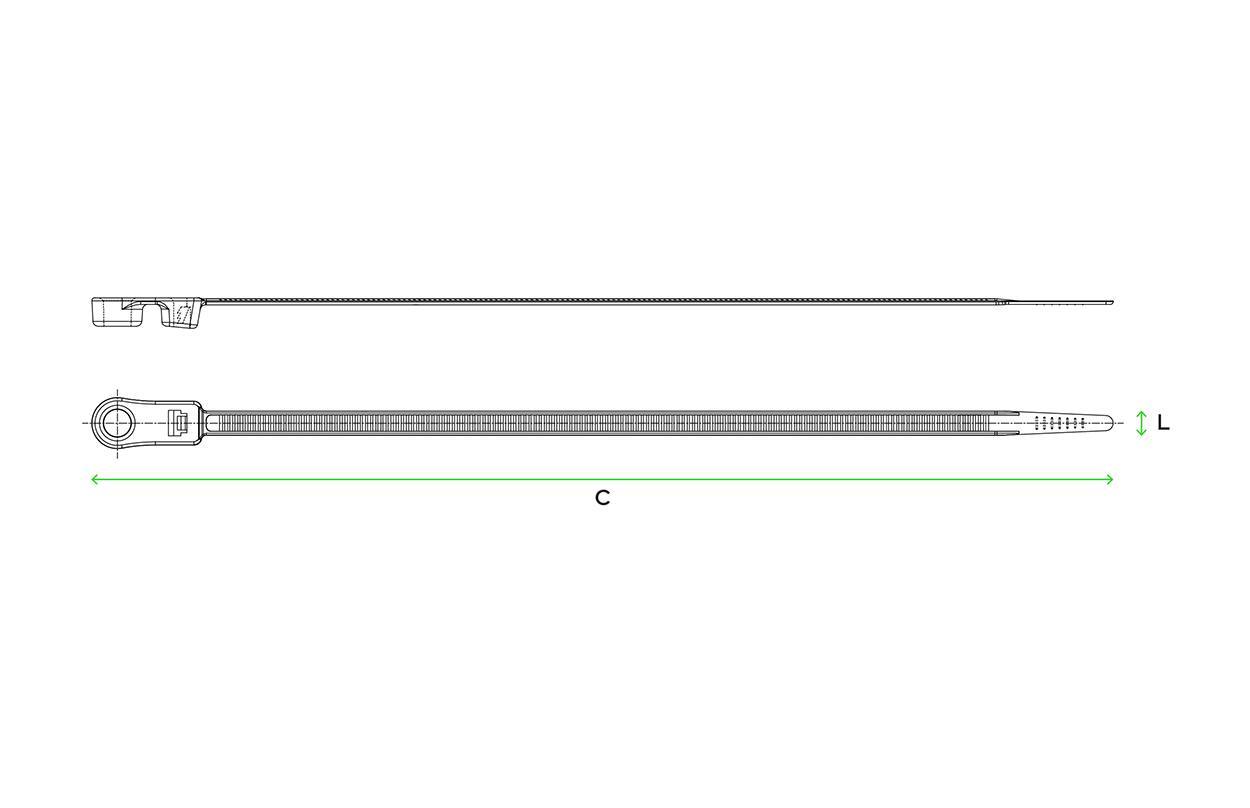

| CODE | REFERENCE | L WIDTH (mm) | C LENGTH (mm) | Ø MINIMUM USEFUL (mm) | Ø MAXIMUM USEFUL (mm) | TENSILE STRENGTH (N) | RECOMMENDED SCREW |
|---|---|---|---|---|---|---|---|
| 7020422011 | PV-025-110-PA-P | 2,5 | 110,0 | 3,0 | 19,0 | 80 | M2,5 |
| 7020423015 | PV-036-150-PA-P | 3,6 | 150,0 | 3,5 | 35,5 | 180 | M4 |
| 7020424016 | PV-048-160-PA-P | 4,8 | 160,0 | 3,5 | 36,8 | 230 | M5 |
| 7020424020 | PV-048-200-PA-P | 4,8 | 200,0 | 3,5 | 49,8 | 230 | M5 |
| 7020424030 | PV-048-300-PA-P | 4,8 | 300,0 | 3,5 | 82,8 | 230 | M5 |
| 7020424037 | PV-048-370-PA-P | 4,8 | 370,0 | 3,5 | 103,8 | 230 | M5 |
| 7020427030 | PV-076-300-PA-P | 7,6 | 300,0 | 8,5 | 78,7 | 540 | M6 |
| 7020427040 | PV-076-400-PA-P | 7,6 | 400,0 | 8,5 | 109,2 | 540 | M6 |
