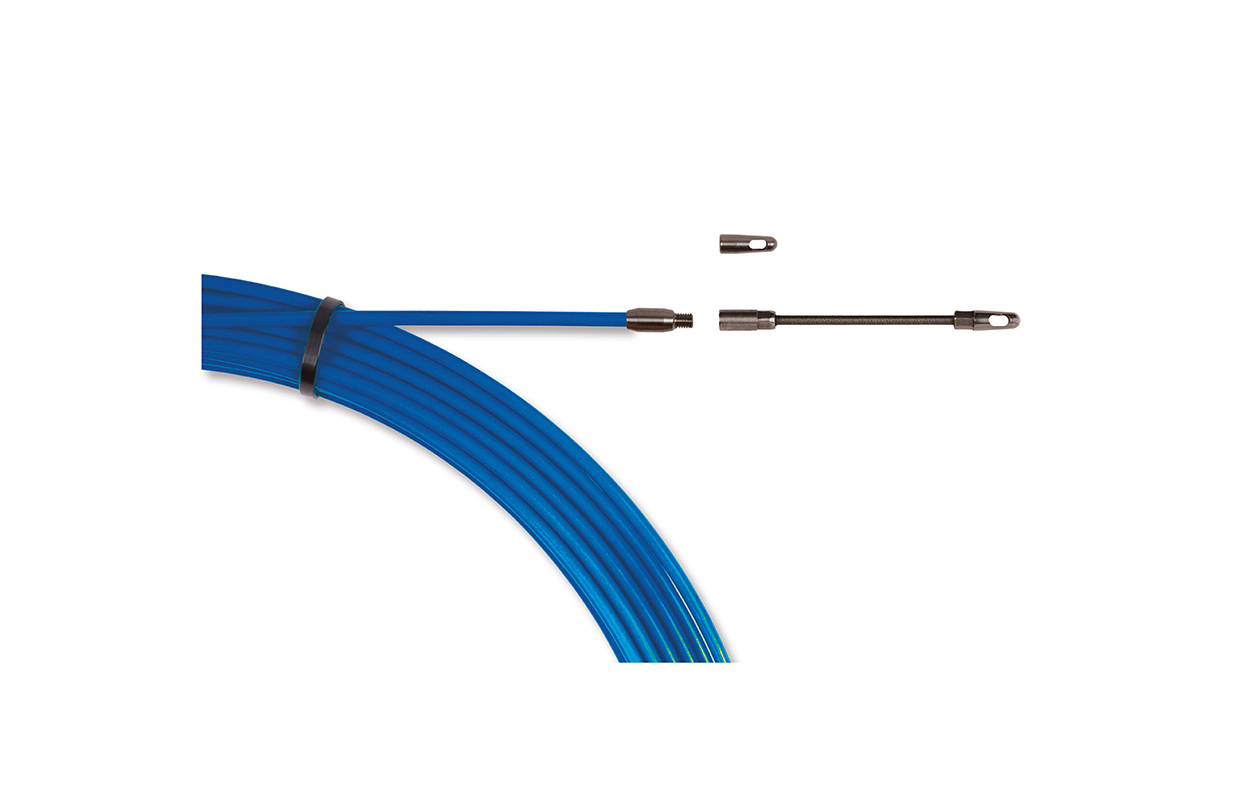

Blue fiberglass fish tape with metal connectors

Blue flexible fiberglass fish tape with metal tips

Blue fiber optic cable with metal connectors

Fish Tape with Coated Steel Blade

Description

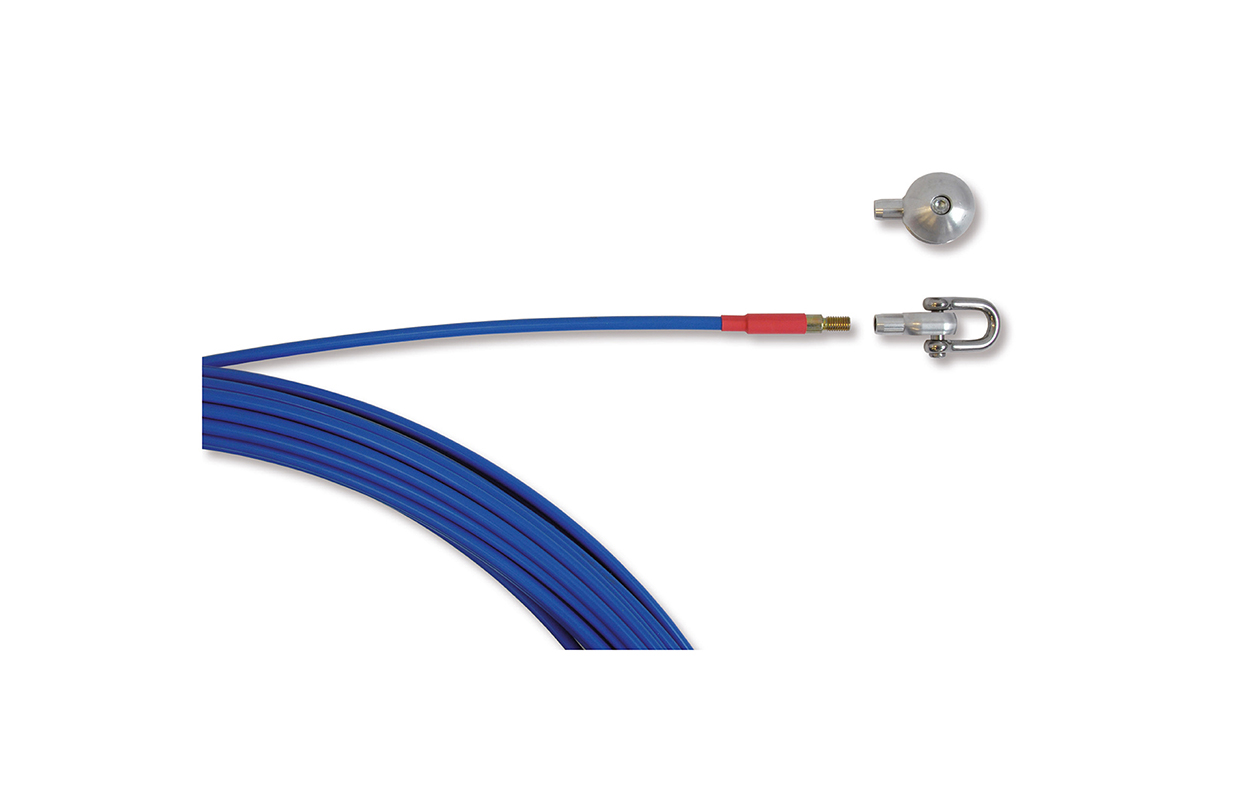

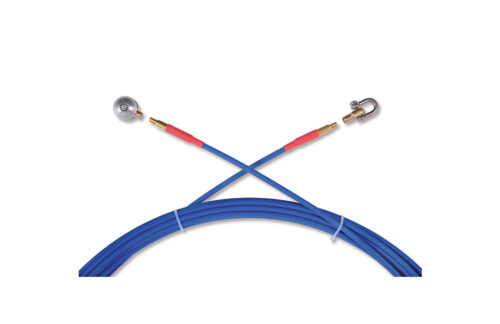

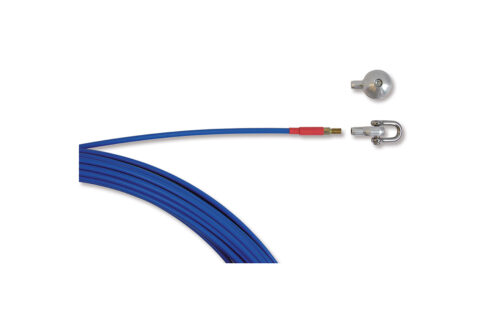

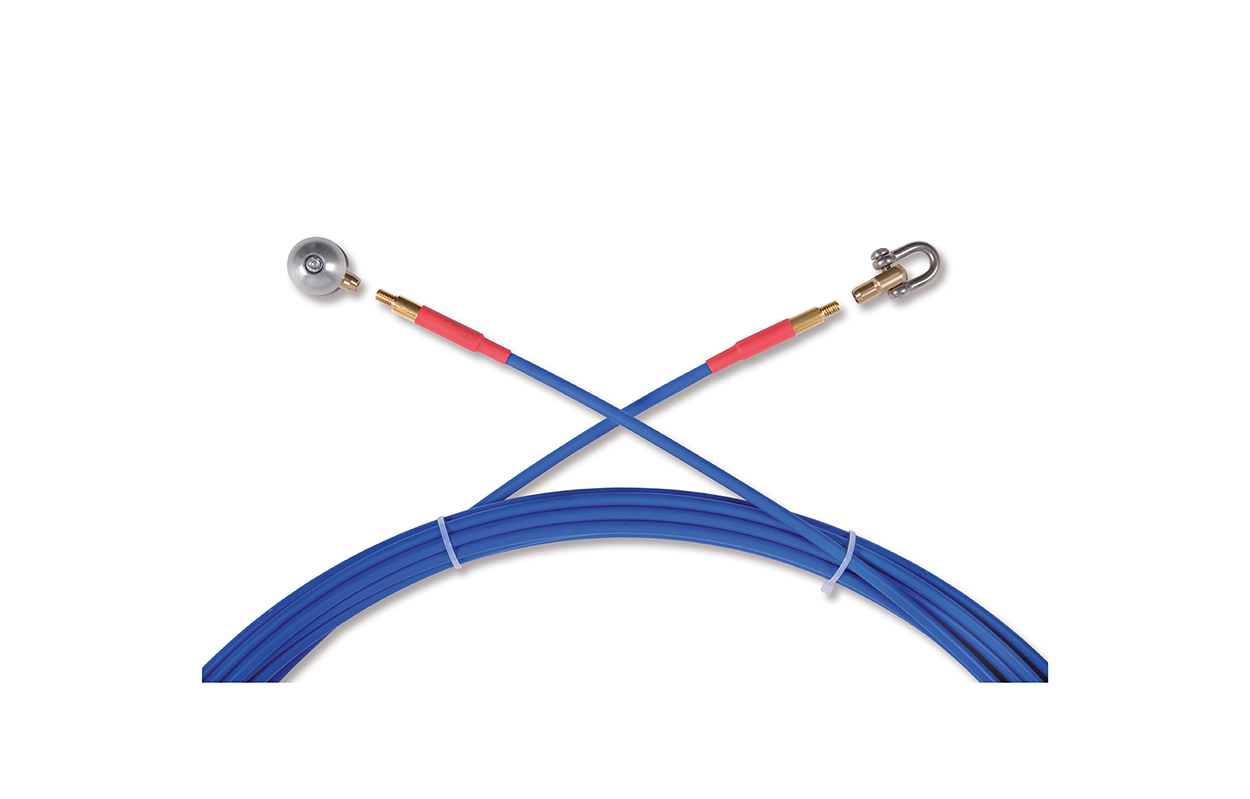

The Fish Tape with a laminated steel core and polypropylene coating combines strength, durability, and versatility, making it ideal for installations in challenging environments. The laminated steel core provides high tensile strength and stability, ensuring reliable performance even in the most demanding applications. The polypropylene coating offers additional protection against wear and facilitates sliding, reducing friction during cable routing. This model is equipped with interchangeable tips.

Downloads

Datasheet

Declaration of Conformity

CODE	REFERENCE	LENGTH (m)	DIAMETER (Ø)	BREAKING LOAD (kg)	TENSILE STRENGTH (kg)	UNIT WEIGHT (kg)
7030421020	GLARA4-20	20	4	650	180	0,5
7030421025	GLARA4-25	25	4	650	180	0,63
7030421030	GLARA4-30	30	4	650	180	0,75
7030421040	GLARA4-40	40	4	650	180	1
7030421050	GLARA4-50	50	4	650	180	1,25
7030423040	GLARA6-40	40	6	900	360	2,66
7030423050	GLARA6-50	50	6	900	360	3,31
7030423060	GLARA6-60	60	6	900	360	3,96
7030423080	GLARA6-80	80	6	900	360	5,26
7030424060	GLARA10-60	60	10	2400	810	10,84
7030424080	GLARA10-80	80	10	2400	810	14,30
7030424100	GLARA10-100	100	10	2400	810	17,76
