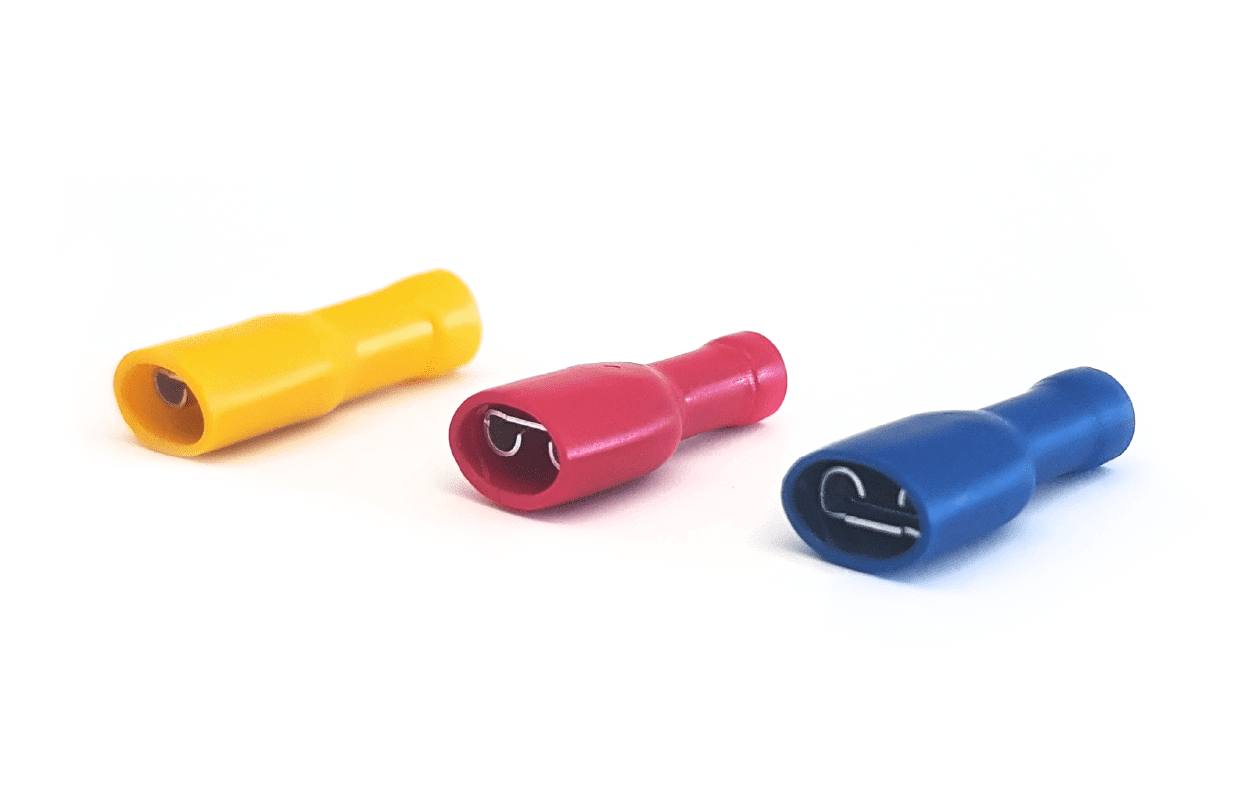

Fully Insulated Female Fast-on Terminal

Description
Connector made of electrolytic copper with tinned finish and full PVC insulation. Features an internal locking mechanism that provides enhanced safety by preventing potential mechanical vibrations.

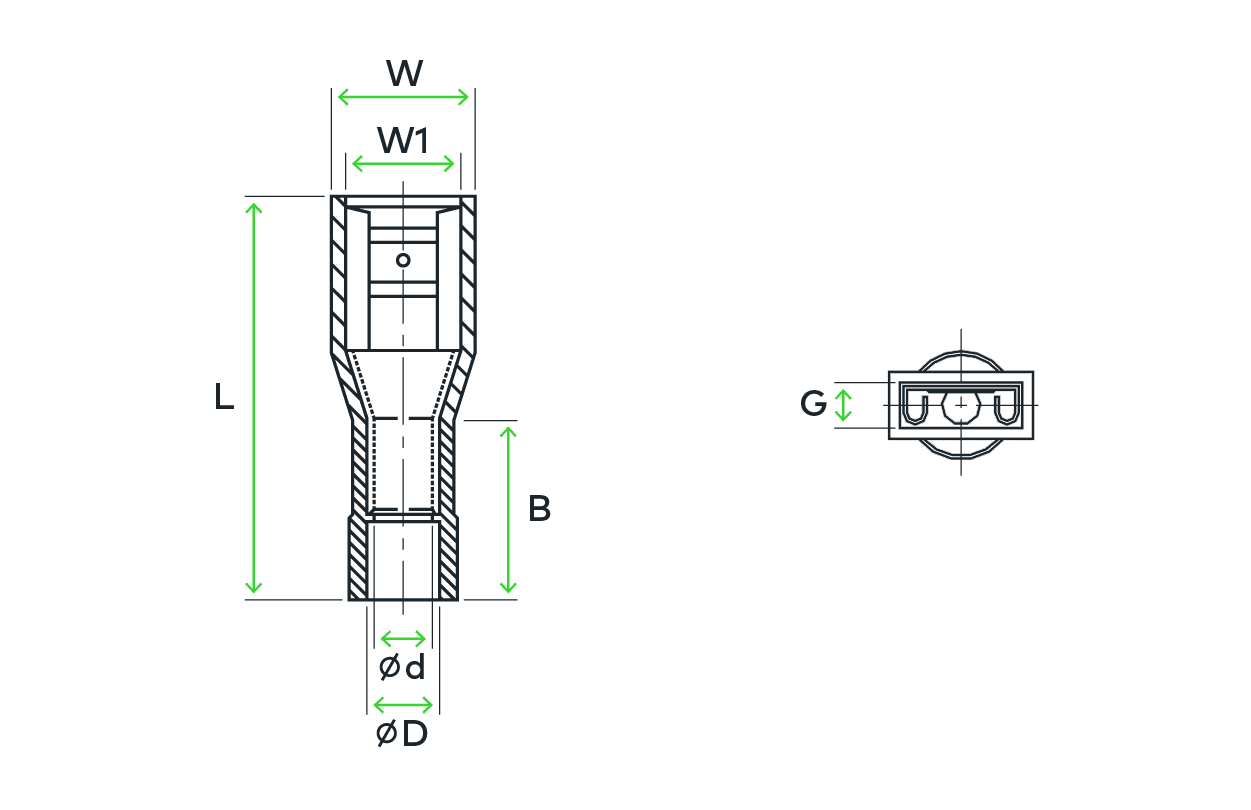

Technical Drawing
CODEREFERENCESECTION (mm2)W1 (mm)W (mm)L (mm)Ød (mm)ØD (mm)G (mm)B (mm)COLOR
7030715638TFFTI-1.5-6.3-080.50-1.506.69.623.01.83.94.810.0Red
7030725638TFFTI-2.5-6.3-081.50-2.506.69.623.02.34.24.810.0Blue
7030760638TFFTI-6-6.3-084-66.69.624.03.55.54.811.0Yellow
