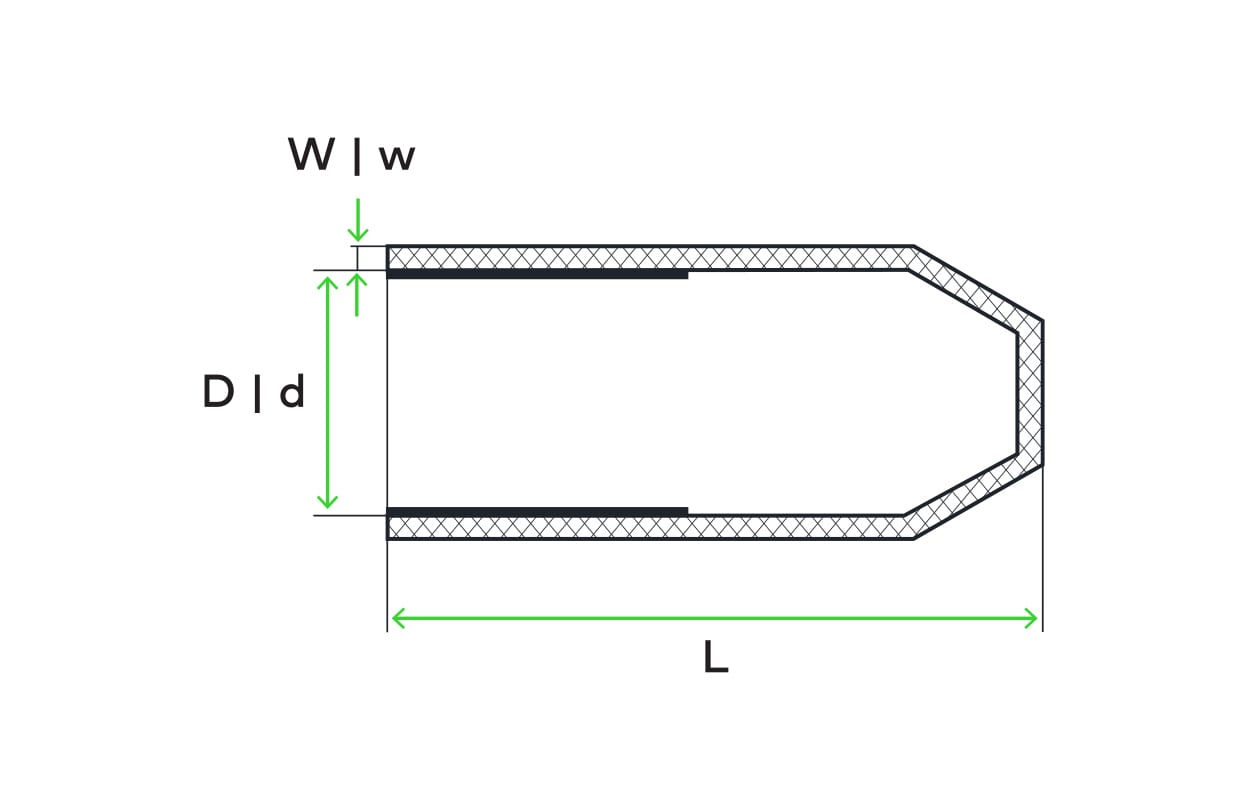

| CODE | REFERENCE | Ø D MIN. BEFORE SHRINKING (mm) | Ø D MAX. AFTER SHRINKING (mm) | w MIN. THICKNESS AFT. SHRINKING (mm) | w MAX. THICKNESS AFT. SHRINKING (mm) | L (± 5.0) LENGTH (mm) | Ø RECOMMENDED MIN - MAX (mm) |
|---|---|---|---|---|---|---|---|
| 7010301205 | CTRA 12-5 | 12.0 | 5.0 | 0.8±0.2 | 2.5±0.1 | 45.0 | 6.0-9.0 |
| 7010301608 | CTRA 16-8 | 16.0 | 8.5 | 1.1±0.3 | 2.5±0.1 | 70.0 | 9.0-14.0 |
| 7010302008 | CTRA 20-8 | 20.0 | 8.5 | 1.0±0.3 | 2.5±0.1 | 72.0 | 9.0-17.0 |
| 7010302511 | CTRA 25-11 | 25.0 | 11.0 | 1.1±0.3 | 2.5±0.1 | 84.0 | 12.0-22.0 |
| 7010303016 | CTRA 30-16 | 30.0 | 16.0 | 1.2±0.3 | 3.0±0.1 | 94.0 | 16.0-25.0 |
| 7010303517 | CTRA 35-17 | 35.0 | 18.0 | 1.0±0.3 | 2.6±0.1 | 94.0 | 18.0-30.0 |
| 7010304015 | CTRA 40-15 | 40.0 | 18.0 | 1.2±0.3 | 2.6±0.1 | 94.0 | 20.0-35.0 |
| 7010305526 | CTRA 55-26 | 55.0 | 26.0 | 1.0±0.3 | 2.5±0.1 | 125.0 | 28.0-45.0 |
| 7010307431 | CTRA 74-31 | 74.0 | 31.0 | 1.2±0.3 | 3.2±0.1 | 145.0 | 40.0-65.0 |
| 7010309740 | CTRA 97-40 | 97.0 | 40.0 | 1.2±0.3 | 5.0±0.1 | 140.0 | 50.0-90.0 |
| 7010312057 | CTRA 120-57 | 120.0 | 57.0 | 1.3±0.3 | 4.4±0.1 | 150.0 | 70.0-110.0 |
| 7010314063 | CTRA 140-63 | 140.0 | 63.0 | 1.3±0.3 | 4.0±0.1 | 184.0 | 90.0-120.0 |
