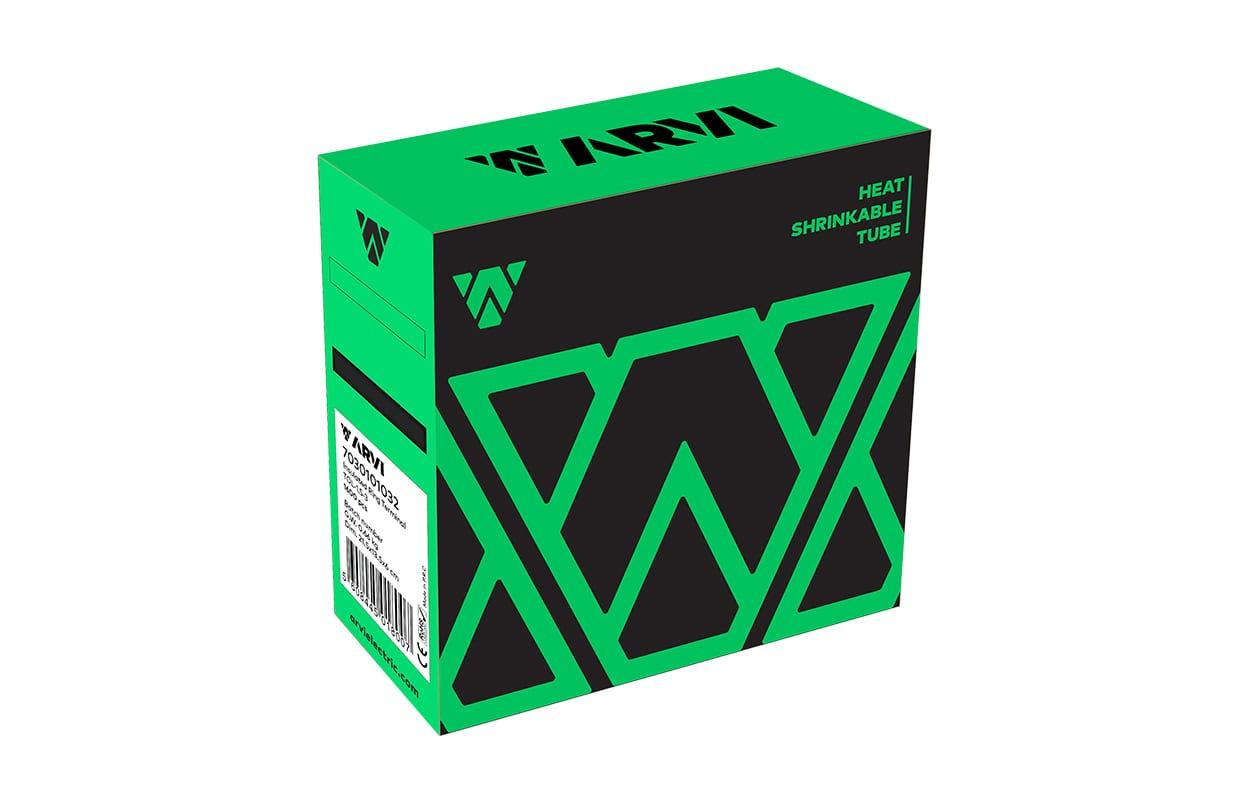

Heat-Shrink Polyolefin in Box

Description

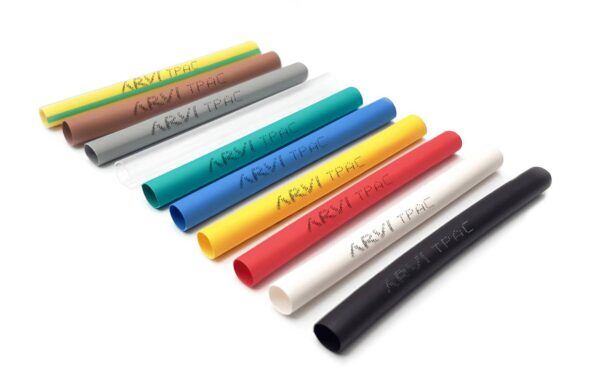

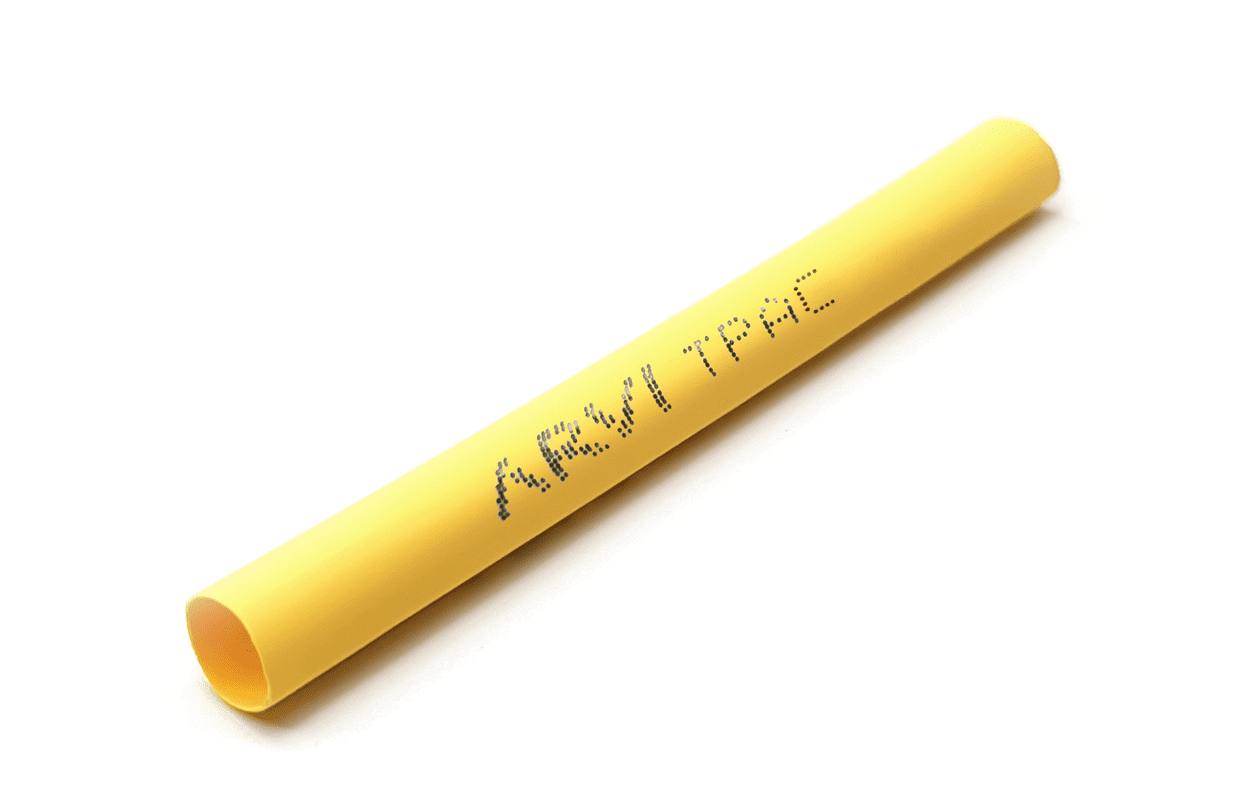

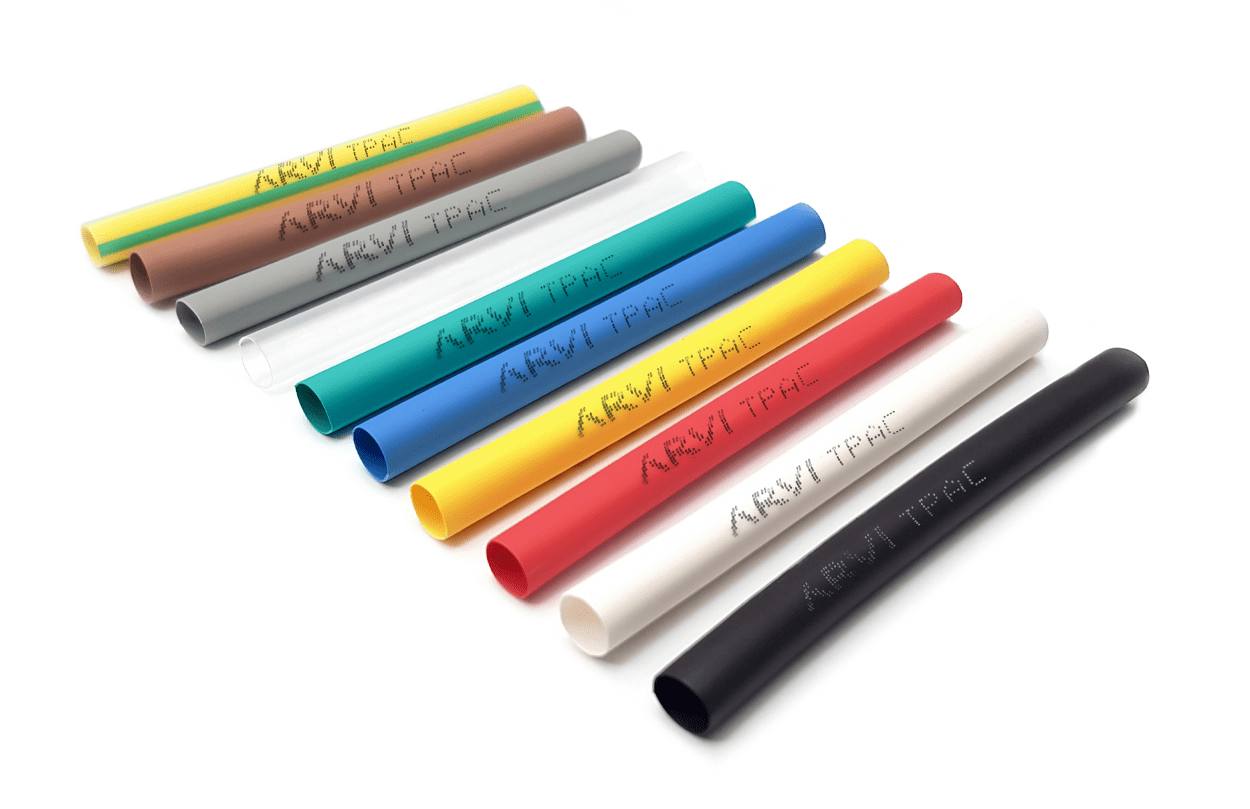

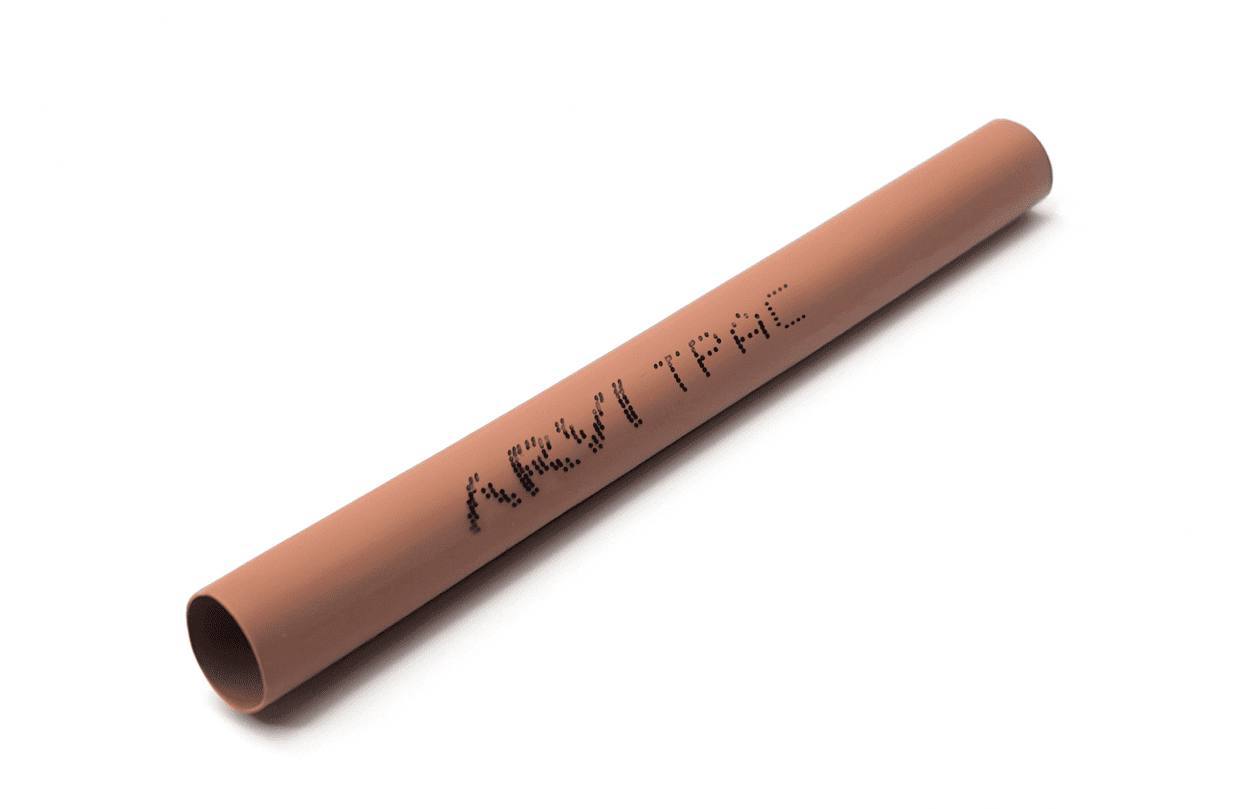

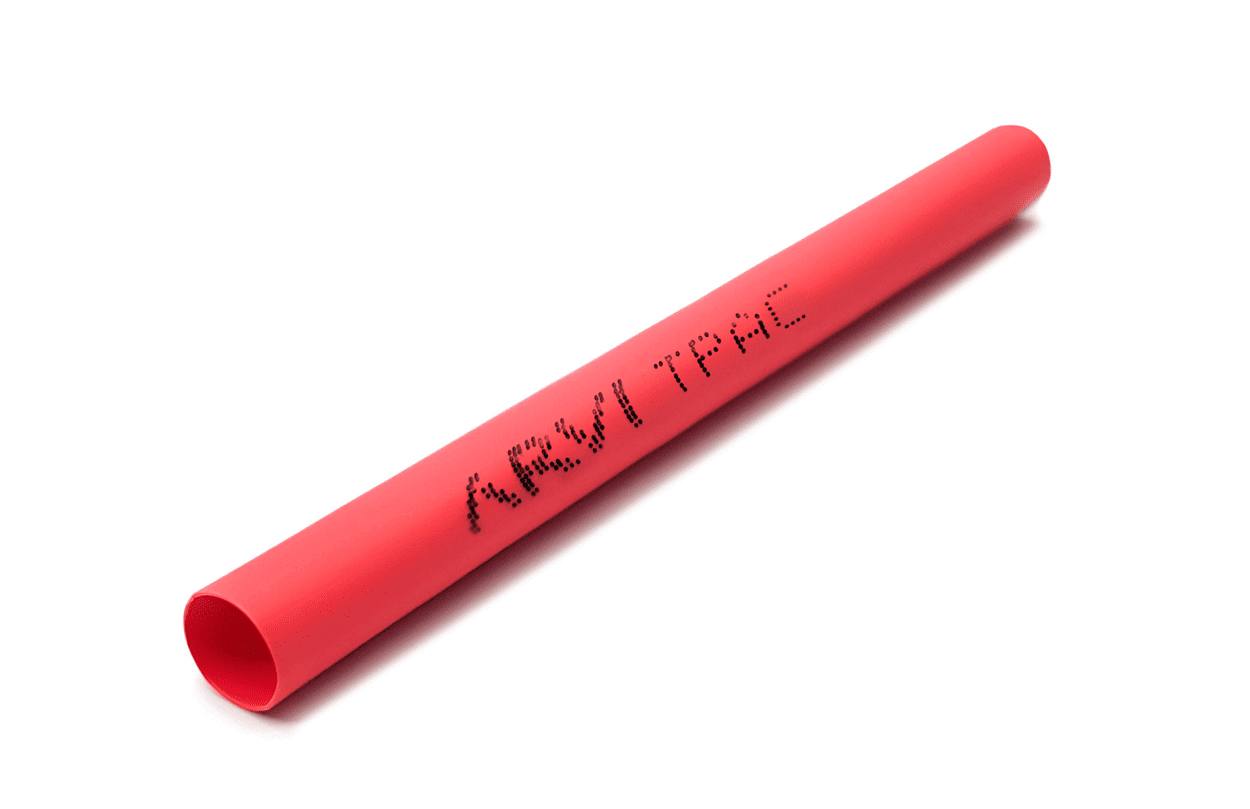

Range of thin-walled heat shrink polyolefins with different sizes, colors, and packaging formats. This product has excellent mechanical and physical properties with a 2:1 shrink ratio. It is highly flexible and flame retardant. When applied, it has the ability to protect against corrosion, ensure good electrical insulation, and improve aesthetics.

Downloads

Datasheet

Declaration of Conformity

Technical Drawing

Downloads

Datasheet

Declaration of Conformity

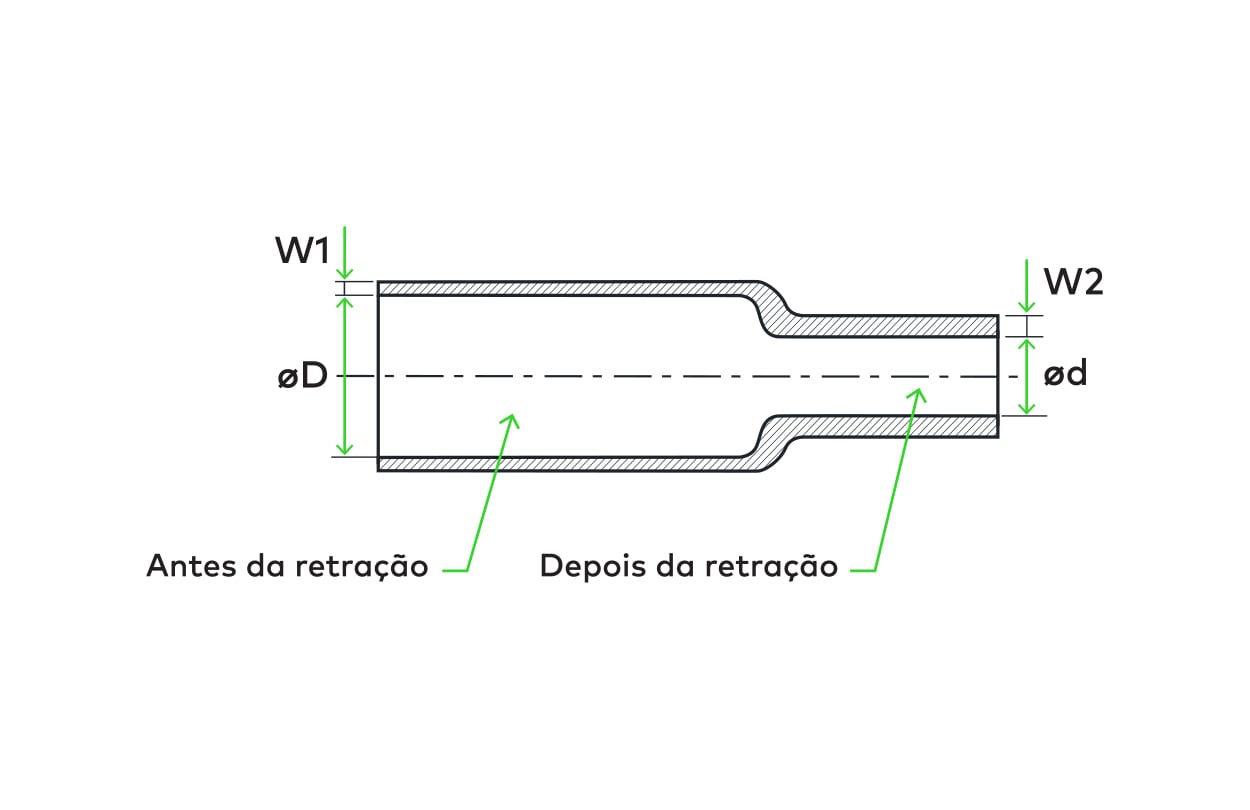

CODE	REFERENCE	LENGTH/BOX (m)	COLOR	Ø D MIN. BEFORE SHRINK (mm)	Ø d MAX. AFTER SHRINK (mm)	W1 MIN. THICKNESS BEFORE SHRINKING (mm)	W2 MAX. THICKNESS AFT. SHRINKING (mm)	Ø RECOMMENDED MIN - MAX (mm)
7010531002	TPAC-1.0-PT	20	Black	1	0.65	0.20±0.05	0.36±0.10	0.75-1.00
7010531004	TPAC-1.5-PT	20	Black	1.5	0.85	0.20±0.05	0.36±0.10	0.95-1.40
7010531006	TPAC-2.0-PT	15	Black	2	1.00	0.20±0.05	0.45±0.10	1.10-1.80
7010531008	TPAC-3.0-PT	15	Black	3	1.50	0.23±0.05	0.45±0.10	1.70-2.60
7010531010	TPAC-4.5-PT	12	Black	4.5	2.30	0.28±0.05	0.56±0.10	2.50-3.80
7010531012	TPAC-6.0-PT	12	Black	6	3.00	0.28±0.05	0.56±0.10	3.30-5.00
7010531014	TPAC-9.0-PT	8	Black	9	4.50	0.30±0.08	0.56±0.10	5.00-7.30
7010531016	TPAC-12.0-PT	8	Black	12	6.00	0.30±0.08	0.56±0.10	6.60-9.70
7010531018	TPAC-16.0-PT	8	Black	16	8.00	0.35±0.10	0.70±0.10	8.80-12.90
7010531020	TPAC-18.0-PT	5	Black	18	9.00	0.35±0.10	0.70±0.10	9.90-14.80
7010531022	TPAC-25.0-PT	5	Black	25	12.50	0.45±0.12	0.90±0.15	13.80-20.40

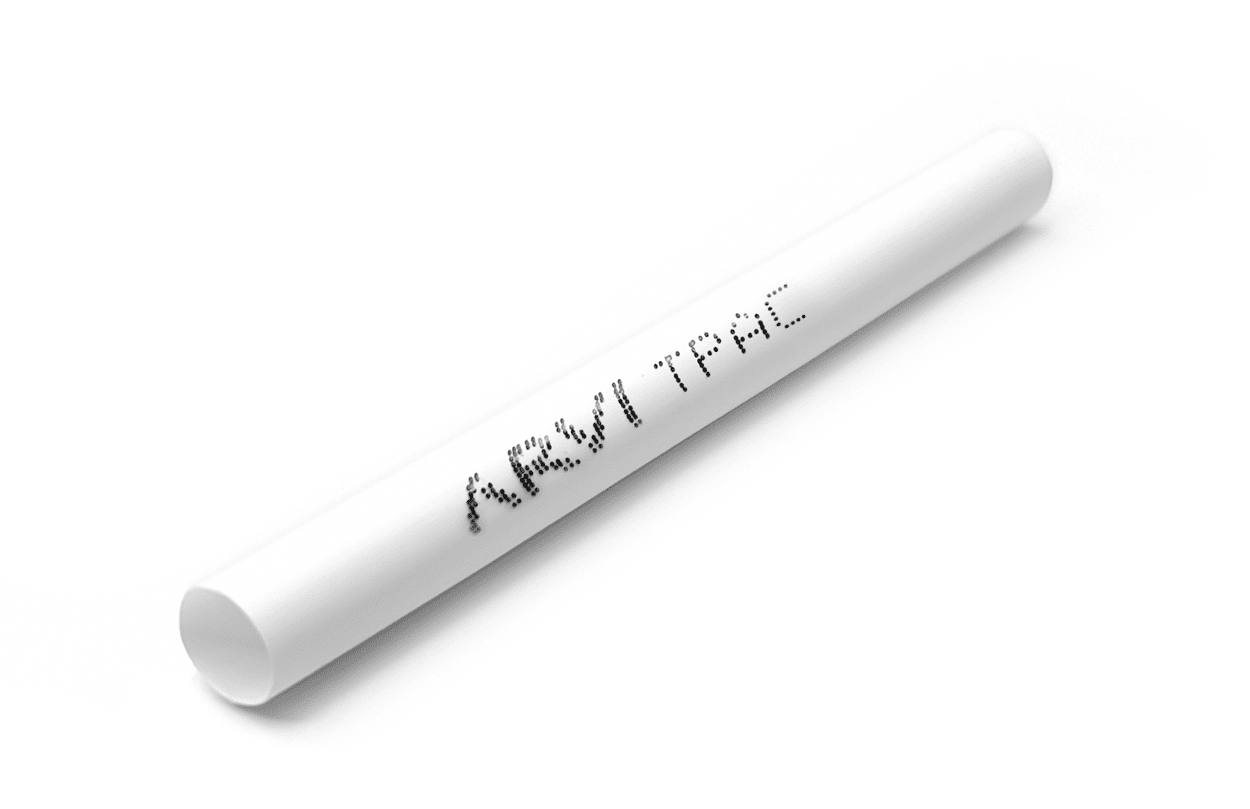

7010532002	TPAC-1.0-BR	20	White	1	0.65	0.20±0.05	0.36±0.10	0.75-1.00
7010532004	TPAC-1.5-BR	20	White	1.5	0.85	0.20±0.05	0.36±0.10	0.95-1.40
7010532006	TPAC-2.0-BR	15	White	2	1.00	0.20±0.05	0.45±0.10	1.10-1.80
7010532008	TPAC-3.0-BR	15	White	3	1.50	0.23±0.05	0.45±0.10	1.70-2.60
7010532010	TPAC-4.5-BR	12	White	4.5	2.30	0.28±0.05	0.56±0.10	2.50-3.80
7010532012	TPAC-6.0-BR	12	White	6	3.00	0.28±0.05	0.56±0.10	3.30-5.00
7010532014	TPAC-9.0-BR	8	White	9	4.50	0.30±0.08	0.56±0.10	5.00-7.30
7010532016	TPAC-12.0-BR	8	White	12	6.00	0.30±0.08	0.56±0.10	6.60-9.70
7010532018	TPAC-16.0-BR	8	White	16	8.00	0.35±0.10	0.70±0.10	8.80-12.90
7010532020	TPAC-18.0-BR	5	White	18	9.00	0.35±0.10	0.70±0.10	9.90-14.80
7010532022	TPAC-25.0-BR	5	White	25	12.50	0.45±0.12	0.90±0.15	13.80-20.40
7010533002	TPAC-1.0-VM	20	Red	1	0.65	0.20±0.05	0.36±0.10	0.75-1.00
7010533004	TPAC-1.5-VM	20	Red	1.5	0.85	0.20±0.05	0.36±0.10	0.95-1.40
7010533006	TPAC-2.0-VM	15	Red	2	1.00	0.20±0.05	0.45±0.10	1.10-1.80
7010533008	TPAC-3.0-VM	15	Red	3	1.50	0.23±0.05	0.45±0.10	1.70-2.60
7010533010	TPAC-4.5-VM	12	Red	4.5	2.30	0.28±0.05	0.56±0.10	2.50-3.80
7010533012	TPAC-6.0-VM	12	Red	6	3.00	0.28±0.05	0.56±0.10	3.30-5.00
7010533014	TPAC-9.0-VM	8	Red	9	4.50	0.30±0.08	0.56±0.10	5.00-7.30
7010533016	TPAC-12.0-VM	8	Red	12	6.00	0.30±0.08	0.56±0.10	6.60-9.70
7010533018	TPAC-16.0-VM	8	Red	16	8.00	0.35±0.10	0.70±0.10	8.80-12.90
7010533020	TPAC-18.0-VM	5	Red	18	9.00	0.35±0.10	0.70±0.10	9.90-14.80
7010533022	TPAC-25.0-VM	5	Red	25	12.50	0.45±0.12	0.90±0.15	13.80-20.40
7010534002	TPAC-1.0-AM	20	Yellow	1	0.65	0.20±0.05	0.36±0.10	0.75-1.00
7010534004	TPAC-1.5-AM	20	Yellow	1.5	0.85	0.20±0.05	0.36±0.10	0.95-1.40
7010534006	TPAC-2.0-AM	15	Yellow	2	1.00	0.20±0.05	0.45±0.10	1.10-1.80
7010534008	TPAC-3.0-AM	15	Yellow	3	1.50	0.23±0.05	0.45±0.10	1.70-2.60
7010534010	TPAC-4.5-AM	12	Yellow	4.5	2.30	0.28±0.05	0.56±0.10	2.50-3.80
7010534012	TPAC-6.0-AM	12	Yellow	6	3.00	0.28±0.05	0.56±0.10	3.30-5.00
7010534014	TPAC-9.0-AM	8	Yellow	9	4.50	0.30±0.08	0.56±0.10	5.00-7.30
7010534016	TPAC-12.0-AM	8	Yellow	12	6.00	0.30±0.08	0.56±0.10	6.60-9.70
7010534018	TPAC-16.0-AM	8	Yellow	16	8.00	0.35±0.10	0.70±0.10	8.80-12.90
7010534020	TPAC-18.0-AM	5	Yellow	18	9.00	0.35±0.10	0.70±0.10	9.90-14.80
7010534022	TPAC-25.0-AM	5	Yellow	25	12.50	0.45±0.12	0.90±0.15	13.80-20.40

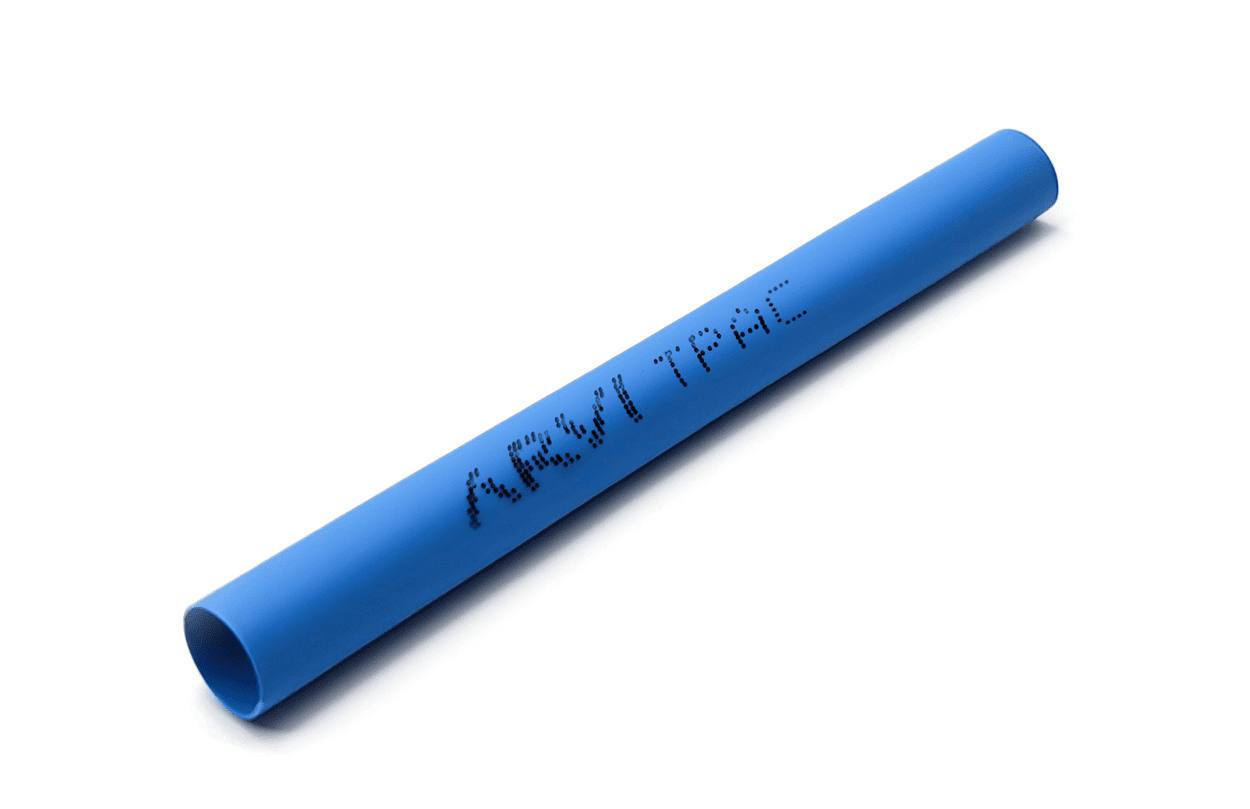

7010535002	TPAC-1.0-AZ	20	Blue	1	0.65	0.20±0.05	0.36±0.10	0.75-1.00
7010535004	TPAC-1.5-AZ	20	Blue	1.5	0.85	0.20±0.05	0.36±0.10	0.95-1.40
7010535006	TPAC-2.0-AZ	15	Blue	2	1.00	0.20±0.05	0.45±0.10	1.10-1.80
7010535008	TPAC-3.0-AZ	15	Blue	3	1.50	0.23±0.05	0.45±0.10	1.70-2.60
7010535010	TPAC-4.5-AZ	12	Blue	4.5	2.30	0.28±0.05	0.56±0.10	2.50-3.80
7010535012	TPAC-6.0-AZ	12	Blue	6	3.00	0.28±0.05	0.56±0.10	3.30-5.00
7010535014	TPAC-9.0-AZ	8	Blue	9	4.50	0.30±0.08	0.56±0.10	5.00-7.30
7010535016	TPAC-12.0-AZ	8	Blue	12	6.00	0.30±0.08	0.56±0.10	6.60-9.70
7010535018	TPAC-16.0-AZ	8	Blue	16	8.00	0.35±0.10	0.70±0.10	8.80-12.90
7010535020	TPAC-18.0-AZ	5	Blue	18	9.00	0.35±0.10	0.70±0.10	9.90-14.80
7010535022	TPAC-25.0-AZ	5	Blue	25	12.50	0.45±0.12	0.90±0.15	13.80-20.40

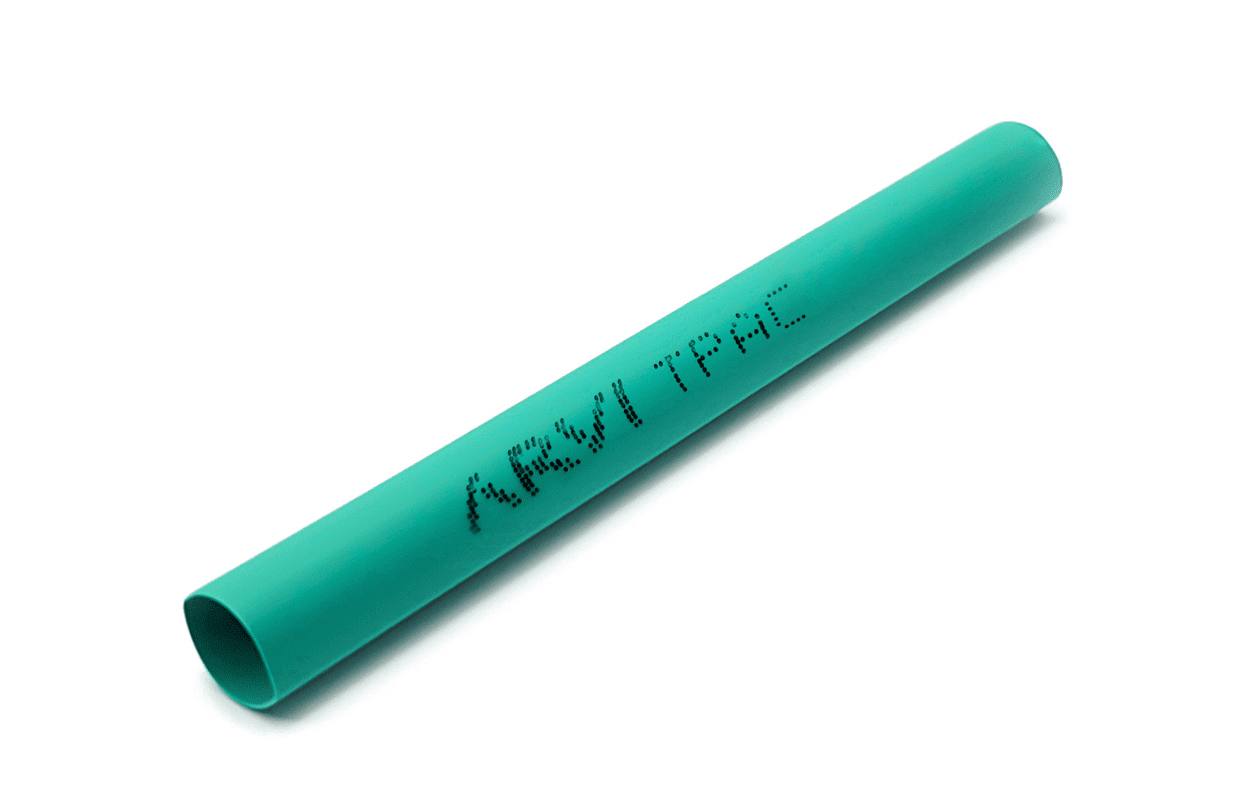

7010536002	TPAC-1.0-VE	20	Green	1	0.65	0.20±0.05	0.36±0.10	0.75-1.00
7010536004	TPAC-1.5-VE	20	Green	1.5	0.85	0.20±0.05	0.36±0.10	0.95-1.40
7010536006	TPAC-2.0-VE	15	Green	2	1.00	0.20±0.05	0.45±0.10	1.10-1.80
7010536008	TPAC-3.0-VE	15	Green	3	1.50	0.23±0.05	0.45±0.10	1.70-2.60
7010536010	TPAC-4.5-VE	12	Green	4.5	2.30	0.28±0.05	0.56±0.10	2.50-3.80
7010536012	TPAC-6.0-VE	12	Green	6	3.00	0.28±0.05	0.56±0.10	3.30-5.00
7010536014	TPAC-9.0-VE	8	Green	9	4.50	0.30±0.08	0.56±0.10	5.00-7.30
7010536016	TPAC-12.0-VE	8	Green	12	6.00	0.30±0.08	0.56±0.10	6.60-9.70
7010536018	TPAC-16.0-VE	8	Green	16	8.00	0.35±0.10	0.70±0.10	8.80-12.90
7010536020	TPAC-18.0-VE	5	Green	18	9.00	0.35±0.10	0.70±0.10	9.90-14.80
7010536022	TPAC-25.0-VE	5	Green	25	12.50	0.45±0.12	0.90±0.15	13.80-20.40

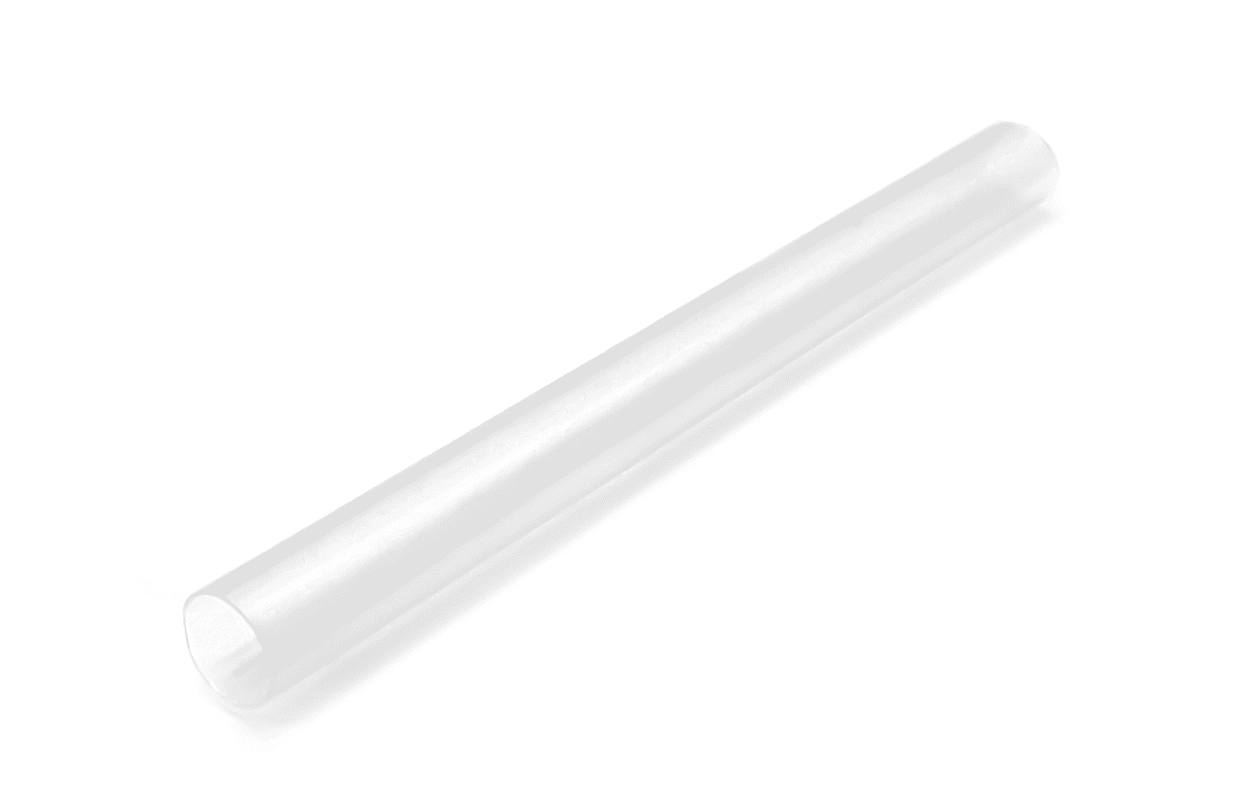

7010537002	TPAC-1.0-TR	20	Transparent	1	0.65	0.20±0.05	0.36±0.10	0.75-1.00
7010537004	TPAC-1.5-TR	20	Transparent	1.5	0.85	0.20±0.05	0.36±0.10	0.95-1.40
7010537006	TPAC-2.0-TR	15	Transparent	2	1.00	0.20±0.05	0.45±0.10	1.10-1.80
7010537008	TPAC-3.0-TR	15	Transparent	3	1.50	0.23±0.05	0.45±0.10	1.70-2.60
7010537010	TPAC-4.5-TR	12	Transparent	4.5	2.30	0.28±0.05	0.56±0.10	2.50-3.80
7010537012	TPAC-6.0-TR	12	Transparent	6	3.00	0.28±0.05	0.56±0.10	3.30-5.00
7010537014	TPAC-9.0-TR	8	Transparent	9	4.50	0.30±0.08	0.56±0.10	5.00-7.30
7010537016	TPAC-12.0-TR	8	Transparent	12	6.00	0.30±0.08	0.56±0.10	6.60-9.70
7010537018	TPAC-16.0-TR	8	Transparent	16	8.00	0.35±0.10	0.70±0.10	8.80-12.90
7010537020	TPAC-18.0-TR	5	Transparent	18	9.00	0.35±0.10	0.70±0.10	9.90-14.80
7010537022	TPAC-25.0-TR	5	Transparent	25	12.50	0.45±0.12	0.90±0.15	13.80-20.40

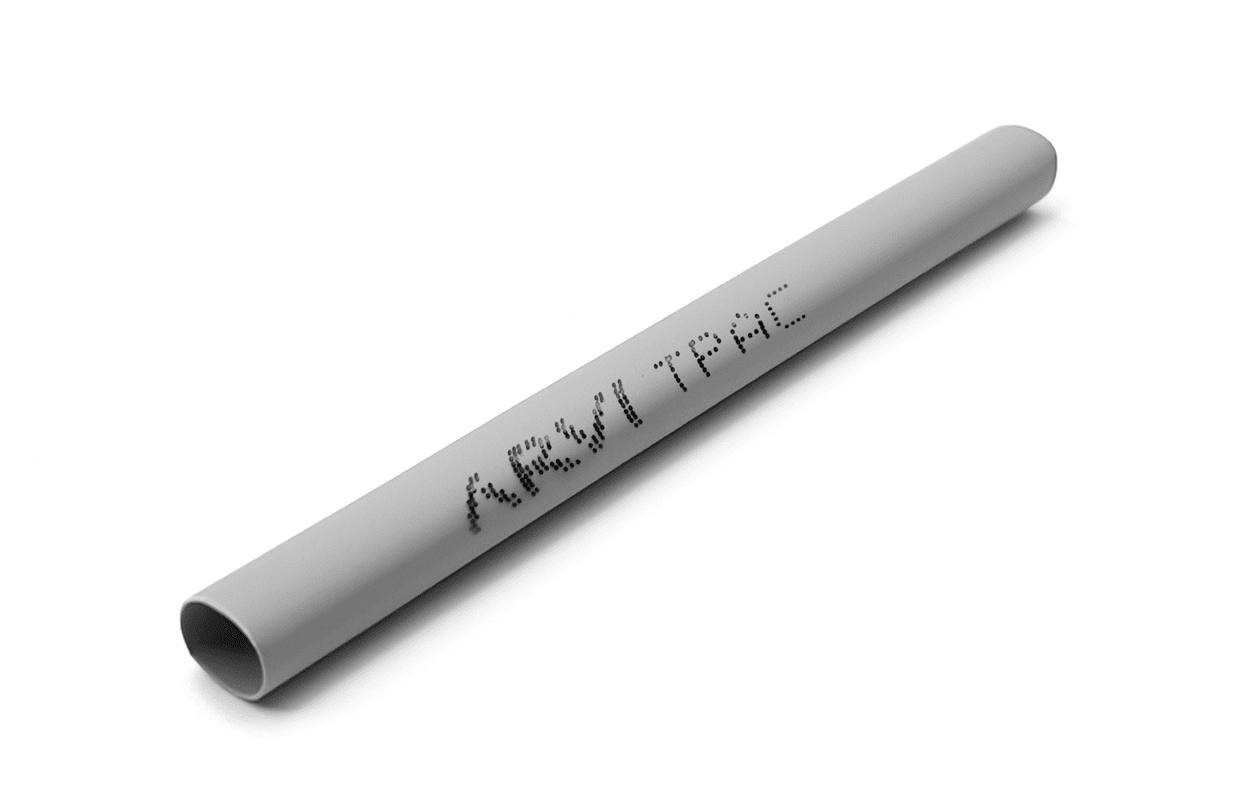

7010538002	TPAC-1.0-CZ	20	Grey	1	0.65	0.20±0.05	0.36±0.10	0.75-1.00
7010538004	TPAC-1.5-CZ	20	Grey	1.5	0.85	0.20±0.05	0.36±0.10	0.95-1.40
7010538006	TPAC-2.0-CZ	15	Grey	2	1.00	0.20±0.05	0.45±0.10	1.10-1.80
7010538008	TPAC-3.0-CZ	15	Grey	3	1.50	0.23±0.05	0.45±0.10	1.70-2.60
7010538010	TPAC-4.5-CZ	12	Grey	4.5	2.30	0.28±0.05	0.56±0.10	2.50-3.80
7010538012	TPAC-6.0-CZ	12	Grey	6	3.00	0.28±0.05	0.56±0.10	3.30-5.00
7010538014	TPAC-9.0-CZ	8	Grey	9	4.50	0.30±0.08	0.56±0.10	5.00-7.30
7010538016	TPAC-12.0-CZ	8	Grey	12	6.00	0.30±0.08	0.56±0.10	6.60-9.70
7010538018	TPAC-16.0-CZ	8	Grey	16	8.00	0.35±0.10	0.70±0.10	8.80-12.90
7010538020	TPAC-18.0-CZ	5	Grey	18	9.00	0.35±0.10	0.70±0.10	9.90-14.80
7010538022	TPAC-25.0-CZ	5	Grey	25	12.50	0.45±0.12	0.90±0.15	13.80-20.40
7010539002	TPAC-1.0-CA	20	Brown	1	0.65	0.20±0.05	0.36±0.10	0.75-1.00
7010539004	TPAC-1.5-CA	20	Brown	1.5	0.85	0.20±0.05	0.36±0.10	0.95-1.40
7010539006	TPAC-2.0-CA	15	Brown	2	1.00	0.20±0.05	0.45±0.10	1.10-1.80
7010539008	TPAC-3.0-CA	15	Brown	3	1.50	0.23±0.05	0.45±0.10	1.70-2.60
7010539010	TPAC-4.5-CA	12	Brown	4.5	2.30	0.28±0.05	0.56±0.10	2.50-3.80
7010539012	TPAC-6.0-CA	12	Brown	6	3.00	0.28±0.05	0.56±0.10	3.30-5.00
7010539014	TPAC-9.0-CA	8	Brown	9	4.50	0.30±0.08	0.56±0.10	5.00-7.30
7010539016	TPAC-12.0-CA	8	Brown	12	6.00	0.30±0.08	0.56±0.10	6.60-9.70
7010539018	TPAC-16.0-CA	8	Brown	16	8.00	0.35±0.10	0.70±0.10	8.80-12.90
7010539020	TPAC-18.0-CA	5	Brown	18	9.00	0.35±0.10	0.70±0.10	9.90-14.80
7010539022	TPAC-25.0-CA	5	Brown	25	12.50	0.45±0.12	0.90±0.15	13.80-20.40

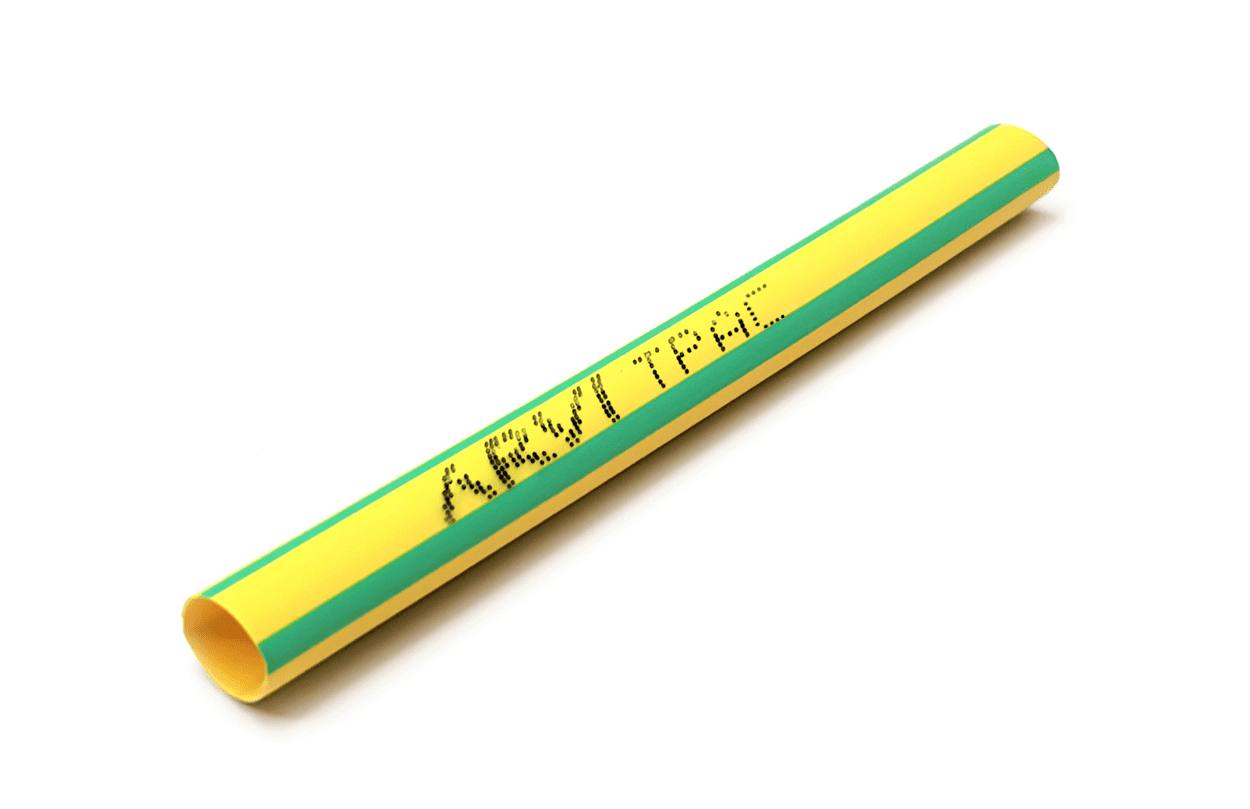

7010540002	TPAC-1.0-V/A	20	Green/Yellow	1	0.65	0.20±0.05	0.36±0.10	0.75-1.00
7010540004	TPAC-1.5-V/A	20	Green/Yellow	1.5	0.85	0.20±0.05	0.36±0.10	0.95-1.40
7010540006	TPAC-2.0-V/A	15	Green/Yellow	2	1.00	0.20±0.05	0.45±0.10	1.10-1.80
7010540008	TPAC-3.0-V/A	15	Green/Yellow	3	1.50	0.23±0.05	0.45±0.10	1.70-2.60
7010540010	TPAC-4.5-V/A	12	Green/Yellow	4.5	2.30	0.28±0.05	0.56±0.10	2.50-3.80
7010540012	TPAC-6.0-V/A	12	Green/Yellow	6	3.00	0.28±0.05	0.56±0.10	3.30-5.00
7010540014	TPAC-9.0-V/A	8	Green/Yellow	9	4.50	0.30±0.08	0.56±0.10	5.00-7.30
7010540016	TPAC-12.0-V/A	8	Green/Yellow	12	6.00	0.30±0.08	0.56±0.10	6.60-9.70
7010540018	TPAC-16.0-V/A	8	Green/Yellow	16	8.00	0.35±0.10	0.70±0.10	8.80-12.90
7010540020	TPAC-18.0-V/A	5	Green/Yellow	18	9.00	0.35±0.10	0.70±0.10	9.90-14.80
7010540022	TPAC-25.0-V/A	5	Green/Yellow	25	12.50	0.45±0.12	0.90±0.15	13.80-20.40
