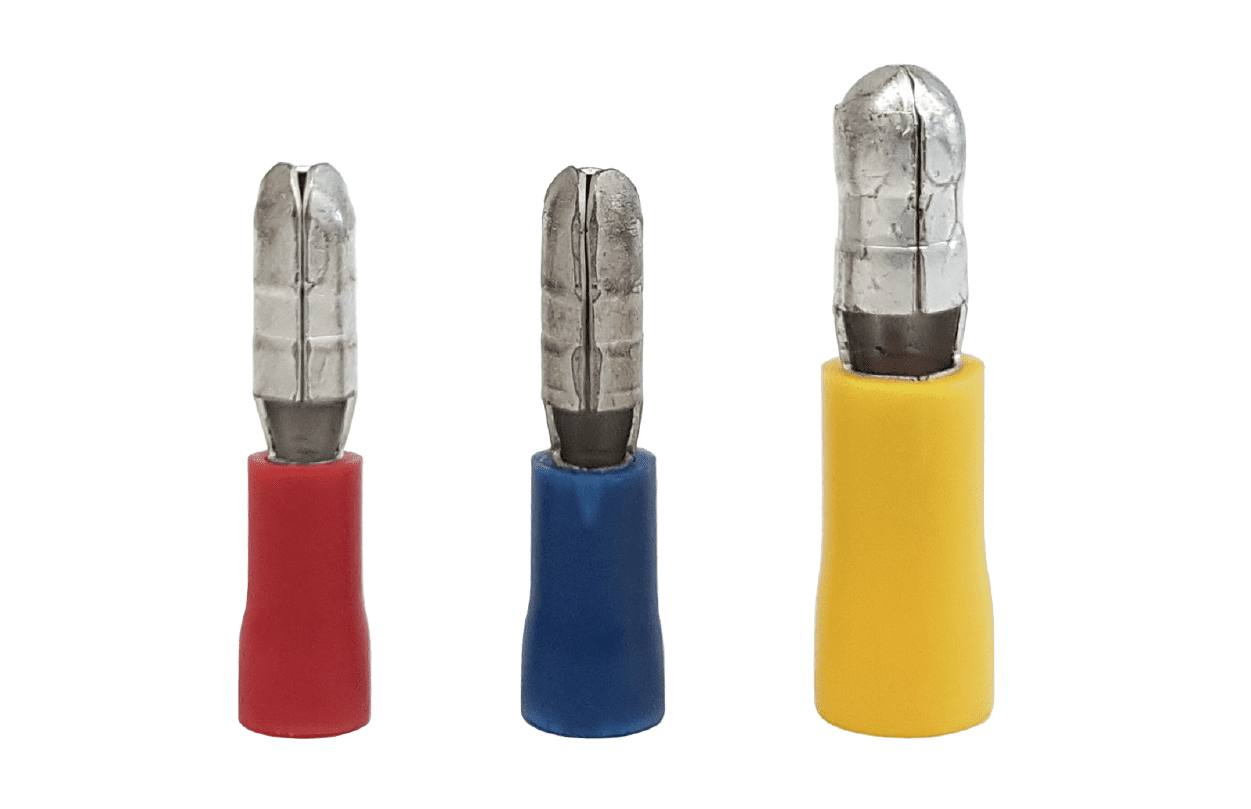

Insulated Male Bullet Terminal

Description
Connector made of electrolytic copper with tinned finish and PVC insulation in the crimping area between the conductor and the terminal.

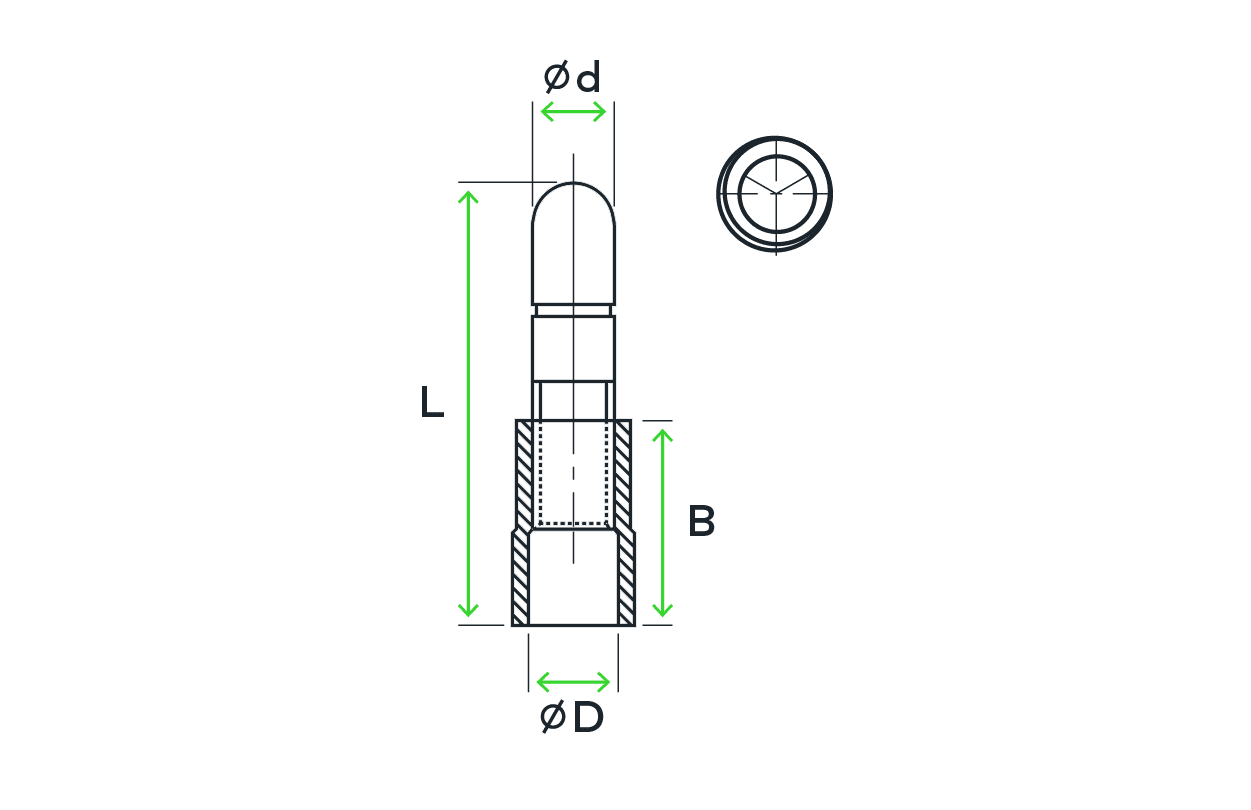

Technical Drawing
CODEREFERENCESECTION (mm2)B (mm)L (mm)Ød (mm)ØD (mm)COLOR
7030400154TCM-1.5-40.50-1.509.820.53.963.5Red
7030400254TCM-2.5-41.50-2.509.820.53.964.2Blue
7030400255TCM-2.5-51.50-2.509.820.54.964.2Blue
7030400605TCM-6-54-613.725.14.965.5Yellow
