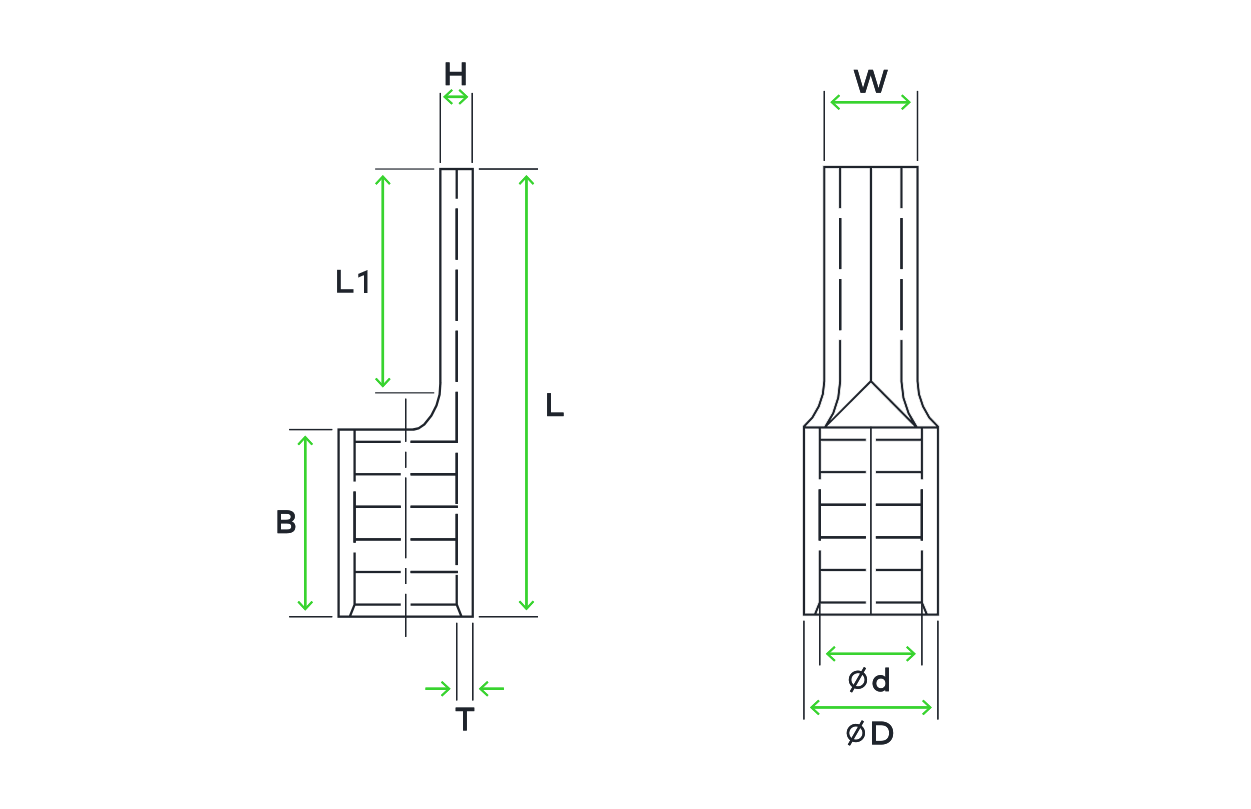

| CODE | REFERENCE | L (mm) | L1 (mm) | B (mm) | W (mm) | Ød (mm) | ØD (mm) | H (mm) | T (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 7107001012 | PM-10-12 | 22.0 | 12.0 | 8.0 | 4.3 | 4.5 | 6.9 | 2.4 | 1.1 |
| 7107001613 | PM-16-13 | 26.0 | 13.0 | 10.0 | 5.5 | 5.9 | 8.4 | 2.6 | 1.2 |
| 7107002515 | PM-25-15 | 33.5 | 15.0 | 13.5 | 6.8 | 7.0 | 9.5 | 2.6 | 1.2 |
| 7107003520 | PM-35-20 | 40.5 | 20.0 | 16.0 | 8.0 | 8.7 | 11.8 | 3.2 | 1.5 |
| 7107005020 | PM-50-20 | 45.0 | 20.0 | 19.0 | 9.5 | 9.8 | 13.6 | 3.8 | 1.8 |
| 7107007025 | PM-70-25 | 55.0 | 25.0 | 24.0 | 11.0 | 11.6 | 15.8 | 4.2 | 2.0 |
| 7107009525 | PM-95-25 | 55.0 | 25.0 | 24.0 | 12.5 | 13.7 | 18.9 | 5.2 | 2.5 |
| 7107012034 | PM-120-34 | 62.0 | 34.0 | 26.0 | 14.3 | 15.1 | 21.3 | 6.2 | 3.0 |
