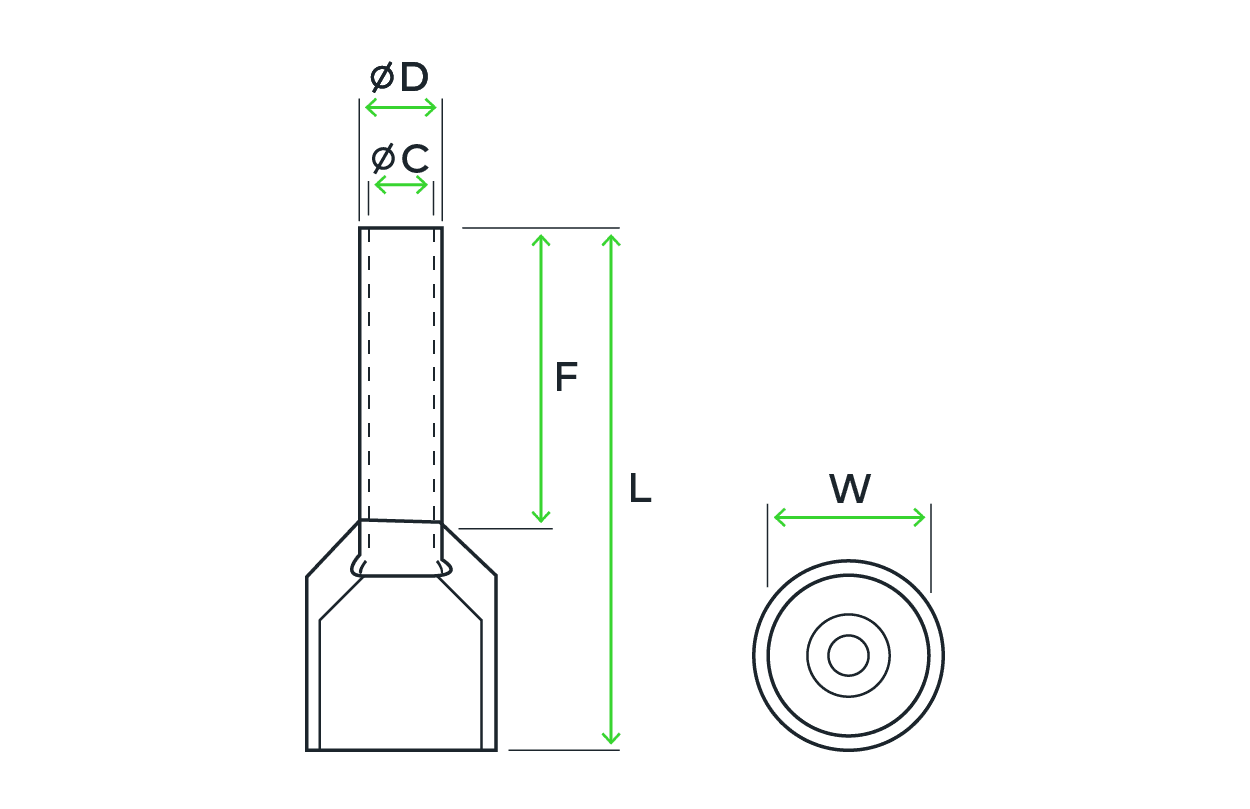

| CODE | REFERENCE | SECTION (mm2) | F (mm) | L (mm) | W (mm) | ØD (mm) | ØC (mm) | COLOR |
|---|---|---|---|---|---|---|---|---|
| 7050100002 | TE-0.25 | 0.25 | 8.0 | 12.4 | 2.5 | 1.1 | 0.8 | Purple |
| 7050100005 | TE-0.50 | 0.50 | 8.0 | 14.4 | 2.6 | 1.3 | 1.1 | White |
| 7050100007 | TE-0.75 | 0.75 | 8.0 | 14.4 | 2.8 | 1.6 | 1.3 | Blue |
| 7050100010 | TE-1 | 1.00 | 8.0 | 14.4 | 3.0 | 1.8 | 1.5 | Red |
| 7050100015 | TE-1.50 | 1.50 | 8.0 | 14.4 | 3.5 | 2.0 | 1.7 | Black |
| 7050100025 | TE-2.50 | 2.50 | 8.0 | 15.6 | 4.0 | 2.6 | 2.3 | Grey |
| 7050100040 | TE-4 | 4.00 | 10.0 | 17.7 | 4.6 | 3.2 | 2.8 | Orange |
| 7050100060 | TE-6 | 6.00 | 12.0 | 20.0 | 6.0 | 3.9 | 3.5 | Green |
| 7050100100 | TE-10 | 10.00 | 12.0 | 21.2 | 7.4 | 4.9 | 4.5 | Brown |
| 7050100160 | TE-16 | 16.00 | 12.0 | 22.2 | 8.5 | 6.2 | 5.8 | Ivory |
| 7050100250 | TE-25 | 25.00 | 16.0 | 27.8 | 11.0 | 7.9 | 7.5 | Black |
| 7050100350 | TE-35 | 35.00 | 16.0 | 30.0 | 12.3 | 8.7 | 8.3 | Red |
| 7050100500 | TE-50 | 50.00 | 20.0 | 36.0 | 14.8 | 10.9 | 10.3 | Blue |
| 7050100700 | TE-70 | 70.00 | 20.0 | 37.0 | 16.0 | 14.3 | 13.5 | Yellow |
| 7050100950 | TE-95 | 95.00 | 25.0 | 43.6 | 18.2 | 15.3 | 14.5 | Red |
| 7050101200 | TE-120 | 120.00 | 27.0 | 47.2 | 20.0 | 17.5 | 16.5 | Blue |
| 7050101500 | TE-150 | 150.00 | 32.0 | 56.6 | 23.4 | 20.6 | 19.6 | Yellow |
