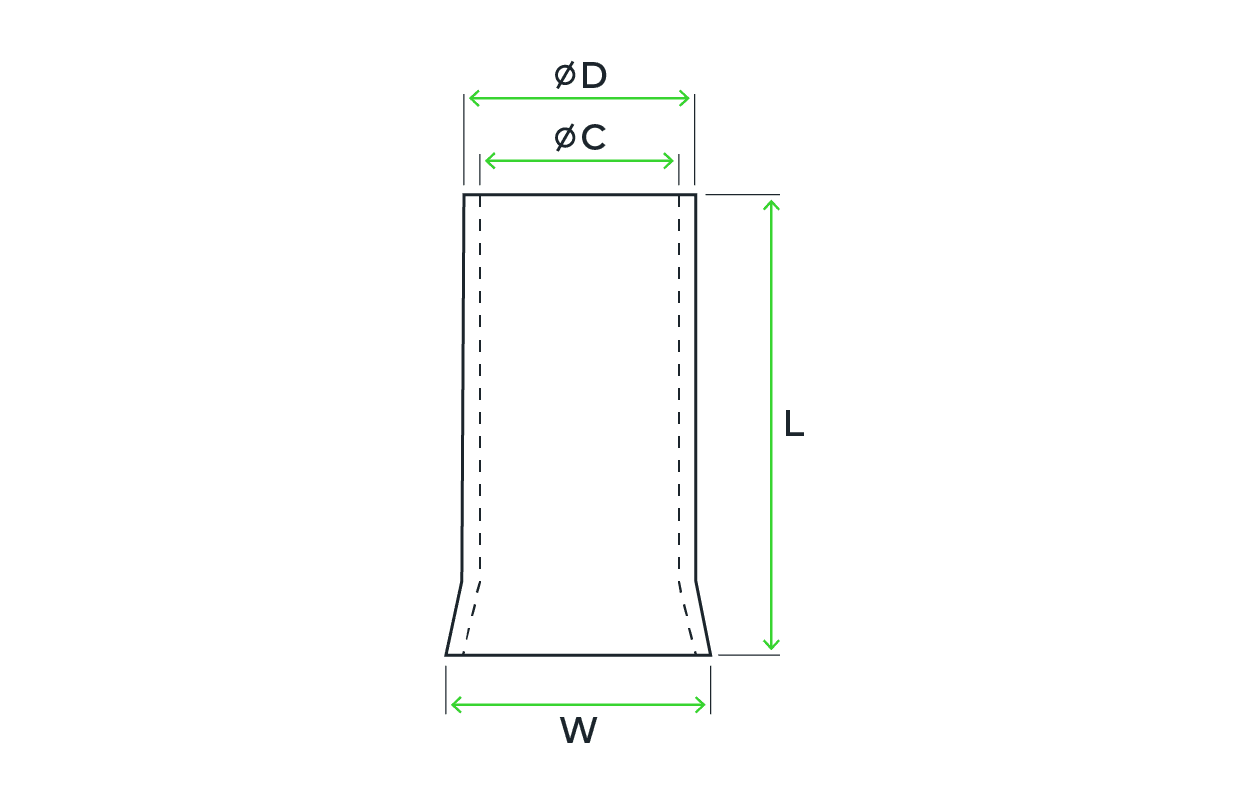

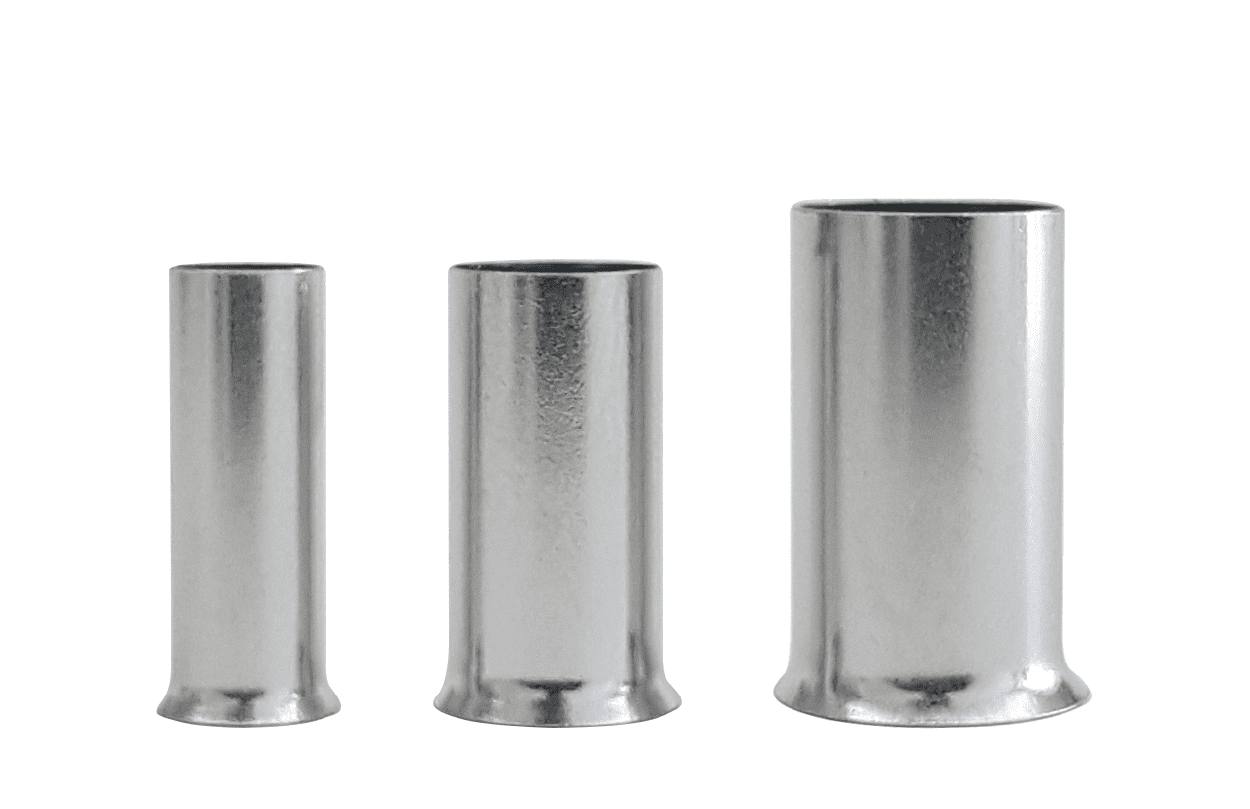

| CODE | REFERENCE | SECTION (mm2) | L (mm) | W (mm) | ØD (mm) | ØC (mm) |
|---|---|---|---|---|---|---|
| 7050400050 | P-0.50-6 | 0.50 | 6.0 | 1.7 | 1.3 | 1.0 |
| 7050400070 | P-0.75-6 | 0.75 | 6.0 | 1.9 | 1.6 | 1.3 |
| 7050400071 | P-0.75-10 | 0.75 | 10.0 | 1.9 | 1.6 | 1.3 |
| 7050400100 | P-1.00-6 | 1.00 | 6.0 | 2.2 | 1.8 | 1.5 |
| 7050400101 | P-1.00-10 | 1.00 | 10.0 | 2.2 | 1.8 | 1.5 |
| 7050400150 | P-1.50-6 | 1.50 | 6.0 | 2.5 | 2.1 | 1.8 |
| 7050400151 | P-1.50-10 | 1.50 | 10.0 | 2.5 | 2.1 | 1.8 |
| 7050400251 | P-2.50-10 | 2.50 | 10.0 | 3.3 | 2.6 | 2.3 |
| 7050400252 | P-2.50-12 | 2.50 | 12.0 | 3.3 | 2.6 | 2.3 |
| 7050400602 | P-6.00-12 | 6.00 | 12.0 | 4.8 | 3.9 | 3.5 |
| 7050401602 | P-16.00-18 | 16.00 | 18.0 | 7.2 | 6.2 | 5.8 |
| 7050403502 | P-35.00-18 | 35.00 | 18.0 | 10.2 | 8.7 | 8.3 |
| 7050405002 | P-50.00-22 | 50.00 | 20.0 | 12.4 | 10.9 | 10.3 |
| 7050407002 | P-70.00-25 | 70.00 | 25.0 | 15.8 | 14.3 | 13.5 |
| 7050409503 | P-95.00-32 | 95.00 | 32.0 | 17.3 | 15.3 | 14.5 |
